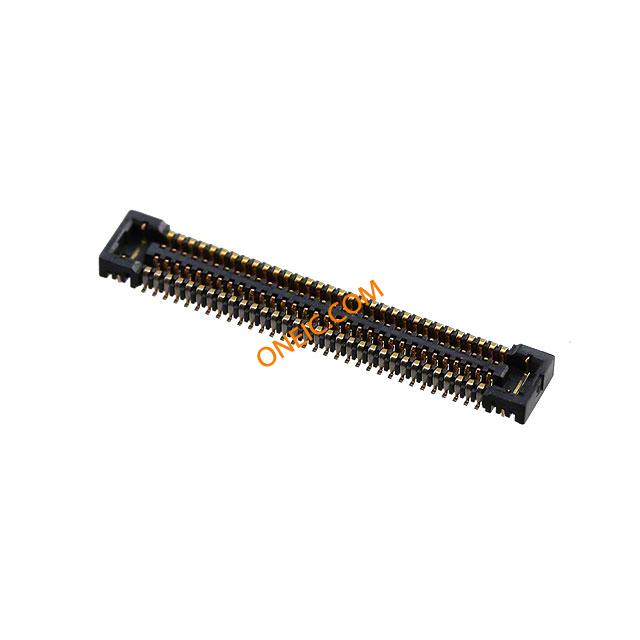

502426-6410
CONN RCPT 64POS VERT DUAL SMD
廠商型號:
502426-6410
芯天下內部編號:
256-502426-6410
生產廠商:
Molex Connector Corporation
描述:
CONN RCPT 64POS VERT DUAL SMD
產品類別:
Connectors|Board to Board & Mezzanine Connectors
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Features | Solder Retention |
| Mounting Type | Surface Mount |
| Pitch | 0.016" (0.40mm) |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Packaging | Bulk |
| Number of Rows | 2 |
| Height Above Board | 0.039" (1.00mm) |
| Mated Stacking Heights | 1mm |
| Standard Package | 100 |
| Contact Finish Thickness | 3.9μin (0.10μm) |
| Number of Positions | 64 |
| Factory Pack Quantity | 3000 |
| Mounting Angle | Vertical |
| Product Category | Board to Board & Mezzanine Connectors |
| Current Rating | 300 mA |
| Contact Plating | Gold |
| Voltage Rating | 50 V |
| Series | 502426 |
| Termination Style | SMD |
| Stack Height | 1 mm |
| Number of Positions / Contacts | 64 |
| Tradename | SlimStack |
| Part # Aliases | 502426-6410-TR750 |
| Product Type | Receptacles |
| RoHS | RoHS Compliant |
| Contact Material | Phosphor Bronze |
| Pitch Spacing | :0.4mm |
| No. of Contacts | :64 |
| Gender | :Receptacle |
| No. of Rows | :2 |
| Contact Termination | :Surface Mount Vertical |
| Contact Resistance | :80mohm |
| Flammability Rating | :UL94V-0 |
| Insulation Resistance | :100Mohm |
| Insulator Material | :Polyester |
| Lead Spacing | :0.4mm |
| No. of Mating Cycles | :30 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-20°C |
| Voltage Rating V AC | :50V |
| Withstand Voltage | :250V |
| Weight (kg) | 0.000059 |
| Tariff No. | 85369010 |
