51CAD-E24-A15L
Res Cermet POT 10K Ohm 10% 1W 1(Elec)/1(Mech)Turn 3.18mm (27.94 X 12.5 X 13.25mm) Pin Panel Mount/Through Hole
廠商型號:
51CAD-E24-A15L
芯天下內部編號:
18-51CAD-E24-A15L
生產廠商:
bourns
描述:
Res Cermet POT 10K Ohm 10% 1W 1(Elec)/1(Mech)Turn 3.18mm (27.94 X 12.5 X 13.25mm) Pin Panel Mount/Through Hole
產品類別:
Resistor|Resistor Trimmers, Potentiometer and Rheostat

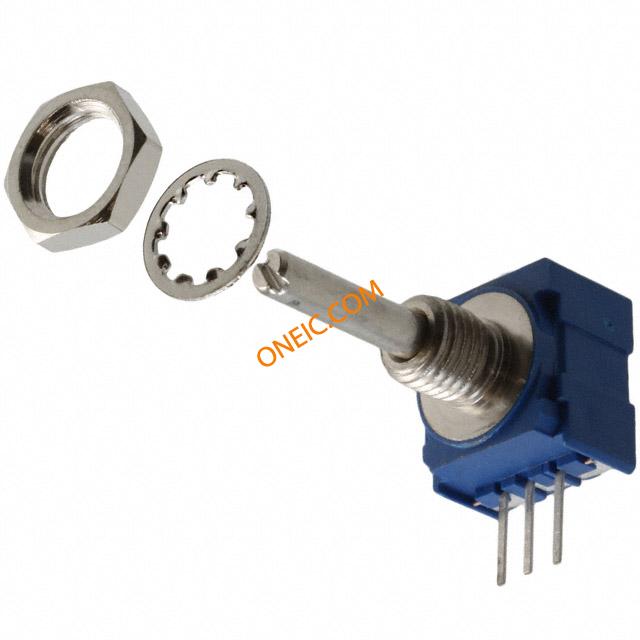

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Potentiometer |
| Resistance Value | 10 KOhm |
| Tolerance | 10 % |
| Number of Turns | 1(Elec)|1(Mech) Turns |
| Power Rating | 1 W |
| Mounting | Panel Mount/Through Hole |
| Technology | Cermet |
| Operating Temperature | 1 to 125 °C |
| Shaft Diameter | 3.18 mm |
| Standard Package | Bulk |
| Product Category | Potentiometers |
| RoHS | RoHS Compliant By Exemption |
| Product | Musical Syst Potentiometer |
| Mounting Style | Panel |
| Taper | Linear |
| Resistance | 10 kOhms |
| Element Type | Cermet |
| Shaft Type | Slotted |
| Termination Style | Pin |
| Packaging | Bulk |
| Shaft Length | 3/4 in |
| Factory Pack Quantity | 10 |
| Resistance Value | 10K |
| EU RoHS | Compliant |
| Product Depth | 12.5 |
| Temperature Coefficient | ±150 |
| Product Length | 27.94 |
| Product Height | 13.25 |
| Power Rating | 1 |
| Shaft Diameter | 3.18 |
| Number of Turns | 1(Elec)|1(Mech) |
| Resistance (Ohms) | 10k |
| Actuator Length | 0.750" (19.05mm) |
| Mounting Type | Through Hole |
| Temperature Coefficient | ±150ppm/°C |
| Size - Body | Rectangular - 0.521" x 0.492" Face x 0.350" L (13.25mm x 12.50mm x 8.89mm) |
| Resistive Material | Cermet |
| Power (Watts) | 1W |
| Actuator Diameter | 0.125" (3.18mm) |
| Adjustment Type | Side Adjustment |
| Actuator Type | Slotted Shaft |
| Rotation | 290° |
| Other Names | 51CADE24A15L |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | 1C to 125C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 10% |
| Military Standard | Not Required |
| Product Length (mm) | 27.94 mm |
| Product Depth (mm) | 12.5 mm |
| Product Height (mm) | 13.25 mm |
| Shaft Diameter (mm) | 3.18 mm |
| Product Diameter (mm) | Not Required mm |
| Track Resistance | :10kohm |
| Track Taper | :Linear |
| No. of Turns | :1 |
| Resistance Tolerance | :± 10% |
| Potentiometer Mounting | :PCB |
| No. of Gangs | :1 |
| Weight (kg) | 0.005 |
| Tariff No. | 85411000 |
| Shaft Length - Metric | :19.05mm |
| SVHC | :No SVHC (16-Dec-2013) |
| MountingType | Panel |
| NumberofTurns | 1 |
| Power,Rating | 1W |
| Leads | for PCB |

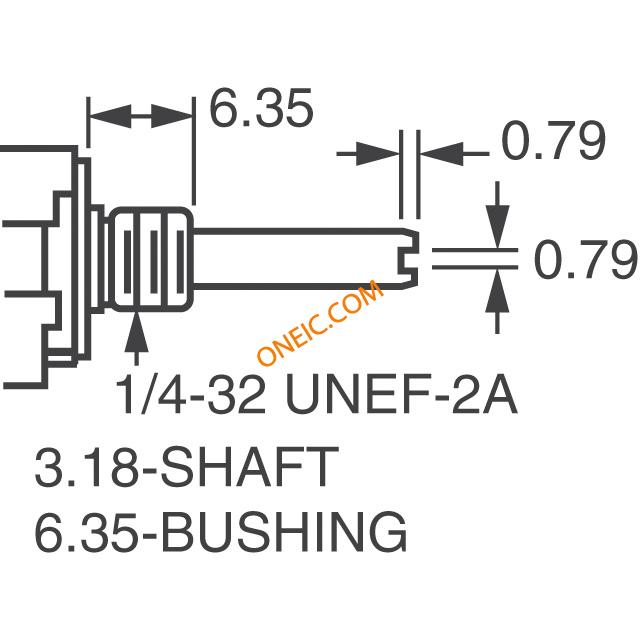

| Thread length | 6.35mm |
| Shaft diameter | 3.18mm |
| Body dimensions | 13.25 x 12.5 x 8.9mm |
| Power | 1W |
| Potentiometer type | shaft |
| Shaft surface | smooth |
| Characteristics | linear |
| Mechanical rotation angle | 290° |
| Track material | cermet |
| Potentiometer kind | single turn |
| Gross weight | 1 g |
| Application | audio |
| Shaft length | 12.7mm |
| Multiplicity | 1 |
| Terminal pitch | 2.54mm |
| Collective package [pcs] | 45 |
| spg | 45 |
