51CAD-E24-A20L

Res Cermet POT 100K Ohm 10% 1W 1(Elec)/1(Mech)Turn 3.18mm (27.94 X 12.5 X 13.25mm) Pin Panel Mount/Through Hole

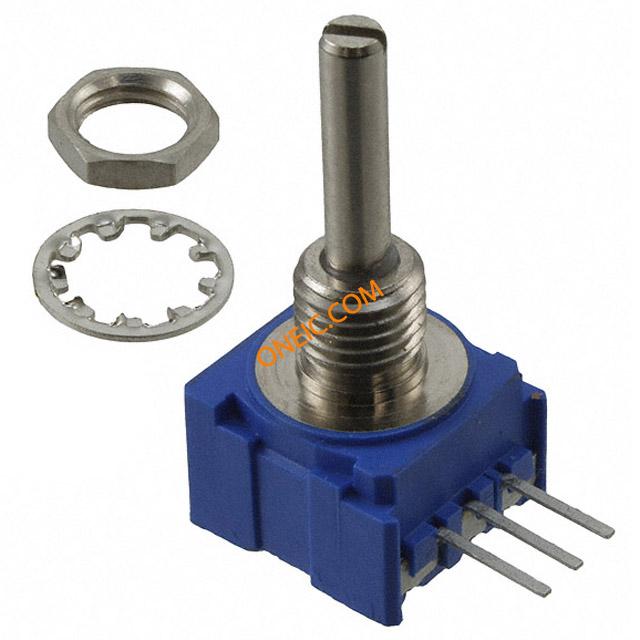

Thumbnail 51CAD-E24-A20L Thumbnail 51CAD-E24-A20L
廠商型號: 51CAD-E24-A20L
芯天下內部編號: 18-51CAD-E24-A20L
生產廠商:
bourns bourns
描述: Res Cermet POT 100K Ohm 10% 1W 1(Elec)/1(Mech)Turn 3.18mm (27.94 X 12.5 X 13.25mm) Pin Panel Mount/Through Hole
產品類別: Resistor|Resistor Trimmers, Potentiometer and Rheostat
客戶編號:
規格書: 查看PDF

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Potentiometer
Resistance Value 100 KOhm
Tolerance 10 %
Number of Turns 1(Elec)|1(Mech) Turns
Power Rating 1 W
Mounting Panel Mount/Through Hole
Technology Cermet
Operating Temperature 1 to 125 °C
Shaft Diameter 3.18 mm
Standard Package Bulk
Product Category Potentiometers
RoHS RoHS Compliant
Product Musical Syst Potentiometer
Mounting Style Panel
Taper Linear
Resistance 100 kOhms
Element Type Cermet
Shaft Type Slotted
Termination Style Pin
Voltage Rating 500 V
Operating Temperature Range + 1 C to + 125 C
Shaft Length 3/4 in
Factory Pack Quantity 10
Resistance Value 100K
EU RoHS Compliant
Product Depth 12.5
Temperature Coefficient ±150
Product Length 27.94
Product Height 13.25
Power Rating 1
Shaft Diameter 3.18
Number of Turns 1(Elec)|1(Mech)
Resistance (Ohms) 100k
Actuator Length 0.750" (19.05mm)
Mounting Type Through Hole
Temperature Coefficient ±150ppm/°C
Size - Body Rectangular - 0.521" x 0.492" Face x 0.350" L (13.25mm x 12.50mm x 8.89mm)
Packaging Bulk
Resistive Material Cermet
Power (Watts) 1W
Actuator Diameter 0.125" (3.18mm)
Adjustment Type Side Adjustment
Actuator Type Slotted Shaft
Rotation 290°
Other Names 51CADE24A20L
rohs Lead free / RoHS Compliant
Operating Temp Range 1C to 125C
Rad Hardened No
Failure Rate Not Required
Tolerance (+ or -) 10%
Military Standard Not Required
Product Length (mm) 27.94 mm
Product Depth (mm) 12.5 mm
Product Height (mm) 13.25 mm
Shaft Diameter (mm) 3.18 mm
Product Diameter (mm) Not Required mm
MountingType Panel
NumberofTurns 1
Power,Rating 1W
調節類型 Side Adjustment
系列 51
端接樣式 PCB Pins
容差 ±10%
電阻 (Ω) 100k
電阻材料 Cermet
圈數 Single
旋轉 290°
溫度系數 ±150ppm/°C
致動器直徑 0.125" (3.18mm)
尺寸 - 本體 Rectangular - 0.521" x 0.492" Face x 0.350" L (13.25mm x 12.50mm x 8.89mm)
致動器類型 Slotted Shaft
功率 (W) 1W
致動器長度 0.750" (19.05mm)
