59025-1-T-02-F
廠商型號:
59025-1-T-02-F
芯天下內部編號:
154-59025-1-T-02-F
生產廠商:
HAMLIN ELECTRONICS
描述:
產品類別:
Sensors|Proximity Sensors

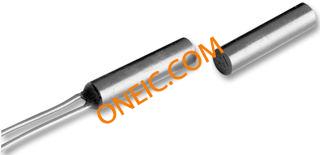

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting Style | Cable |
| Sensing Method | Magnetic |
| Maximum Operating Temperature | + 105 C |
| Barrel Size | 6.22 mm |
| Packaging | Bulk |
| Sensing Distance | 6 mm |
| Supply Voltage | 200 V |
| Minimum Operating Temperature | - 40 C |
| Output Configuration | NO |
| Part # Aliases | 59025-010 |
| Supply Current | 0.5 A |
| RoHS | RoHS Compliant |
| Mounting | Through Hole |
| Operating Temp Range | -40C to 105C |
| Pin Count | 2 |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Proximity Sensor Type | Magnetic |
| Proximity Sensor Sensing Distance | 6 mm |
| Proximity Sensor Sensing Distance Range | 2 to 7 mm |
| Proximity Sensor Switching Mode | NO |
| Sensing Range Max | :20.32mm |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| Body Length | :25.4mm |
| Contact Configuration | :SPST-NO |
| External Diameter | :6.22mm |
| No. of Poles | :1 |
| Operating Temperature Range | :-40°C to +105°C |
| Sensing Range | :12mm to 18mm |
| Sensor Input | :Magnetic |
| Series | :59025 |
| Supply Voltage DC Max | :200V |
| Switching Voltage | :200VDC |
| Termination Type | :Wire Leaded |
| Weight (kg) | 0.01 |
| Tariff No. | 90318038 |
