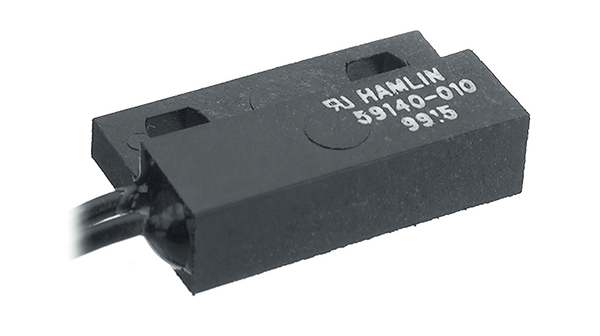

59140-010
Proximity Sensor Magnetic NO 2-Pin
廠商型號:
59140-010
芯天下內部編號:
154-59140-010
生產廠商:
Hamlin
描述:
Proximity Sensor Magnetic NO 2-Pin
產品類別:
Sensors, Transducers|Magnetic Sensors - Position, Proximity, Speed (Modules)|59140

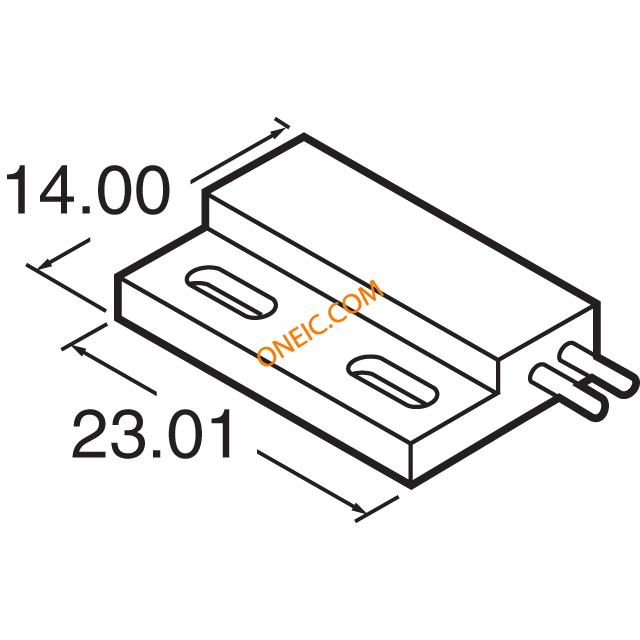

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Mounting | Screw |
| Module/IC Classification | Module |
| Terminal Type | Cable |
| Switching Mode | NO |
| PCB | 2 |
| Minimum Operating Temperature | -40 |
| Type | Magnetic |
| Pin Count | 2 |
| Subcategory | Proximity Sensor |
| Lead Time | 60 Days |
| Function | Switch |
| Must Operate | 4.44mm |
| Termination Style | Wire Leads |
| Output Type | SPST-NO |
| Actuator Material | Magnet |
| Standard Package | 50 |
| Must Release | 20.32mm |
| Other Names | 59140010 |
| Package/Case | Flange Mount |
| rohs | Lead free / RoHS Compliant |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 105C |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Proximity Sensor Type | Magnetic |
| Proximity Sensor Switching Mode | NO |
| Switching Power (Max) | 10W |
| Carry Current | 1.2 Amps |
| Activate Distance | .374" (9.5mm) |
| Mounting Type | Chassis Mount |
| Terminaion Style | Wire Leads |
| Switching Voltage (DC) (Max) | 200V |
| Max Switching Voltage | 200 VDC |
| MainCategory | Sensors |
| Magnet | Specified, Not Included |
| Circuit | SPST-NO |
| Termination | Leads |
| Switching Current (DC) (Max) | 500mA |
| Contact Configuration | 1A SPST-NO |
| SubCategory | Reed Sensor |
| 功能 | Switch |
| 系列 | 59140 |
| 端接樣式 | Wire Leads |
| 致動器材料 | Magnet |
| 封裝/外殼 | Flange Mount |
| 類型 | Reed Switch |
| 輸出類型 | SPST-NO |
| Switching capacity | 10 W |
| Shock resistance | 100 |
| Switching voltage | 200 |
| Switched current | 500 |
| Switching interval | 4.44 |
| Connection | Cable 0.3 m |
| Cable sheath | PVC |
| Breakdown voltage | 250 |
| Contact | 1 make contact (NO) |
| Dropout clearance | 20.32 |
| Operating temperature | -40...+125 °C |
