59140-040
Proximity Sensor Magnetic NC 2-Pin
廠商型號:
59140-040
芯天下內部編號:
154-59140-040
生產廠商:
Hamlin
描述:
Proximity Sensor Magnetic NC 2-Pin
產品類別:
Sensors, Transducers|Magnetic Sensors - Position, Proximity, Speed (Modules)|59140

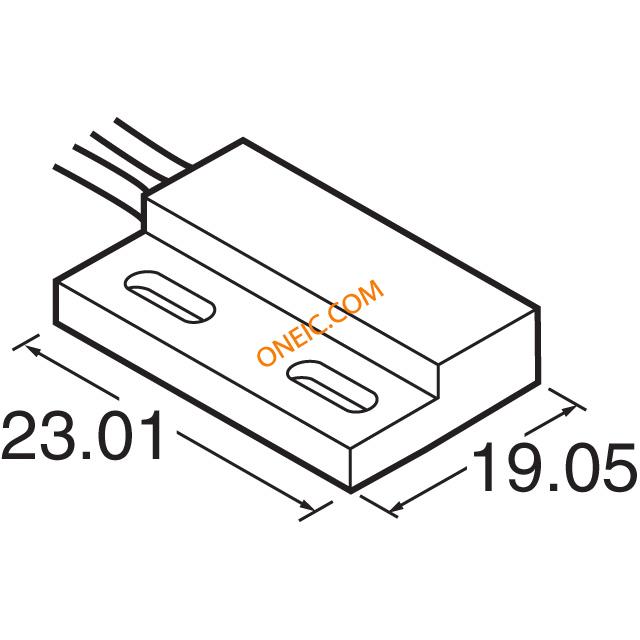

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Mounting | Screw |
| Module/IC Classification | Module |
| Terminal Type | Cable |
| Switching Mode | NC |
| PCB | 2 |
| Minimum Operating Temperature | -40 |
| Type | Magnetic |
| Pin Count | 2 |
| Subcategory | Proximity Sensor |
| Lead Time | 21 Days |
| Function | Switch |
| Must Operate | 4.44mm |
| Termination Style | Wire Leads |
| Output Type | SPST-NC |
| Standard Package | 50 |
| Must Release | 20.32mm |
| Actuator Material | Magnet |
| Package/Case | Flange Mount |
| rohs | Lead free / RoHS Compliant |
| RoHS | RoHS Compliant |
| Sensing Range Max | :20.32mm |
| Supply Current | :250mA |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105??C |
| Carry Current | :1.5A |
| Contact Rating | :5W |
| Features | :Mini Flange Mount, 3.2cm2 Area, Glue or Screw Fixing |
| Weight (kg) | 0.009 |
| Tariff No. | 85365019 |
