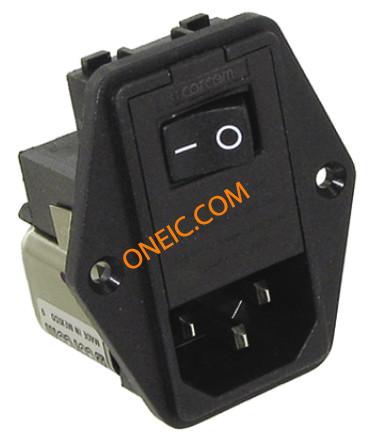

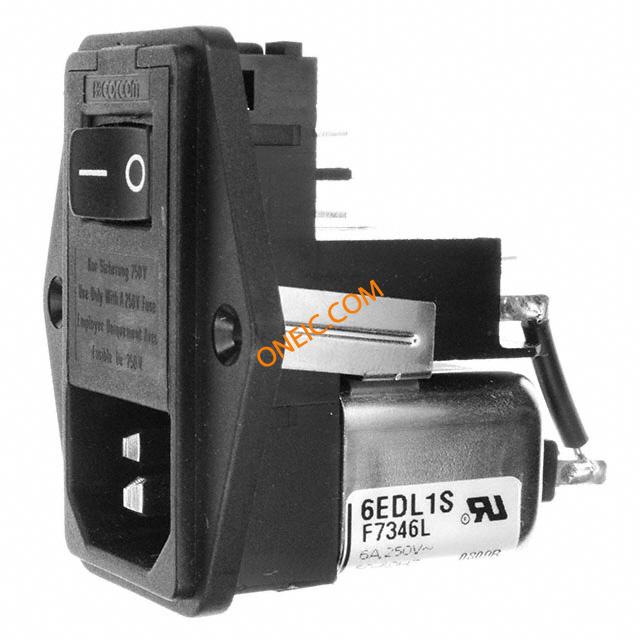

6EDL1S
AC Power Entry Modules 6A IEC - .110 FASTON FLANGE MOUNT
廠商型號:
6EDL1S
芯天下內部編號:
35-6EDL1S
生產廠商:
TE Connectivity / Corcom
描述:
AC Power Entry Modules 6A IEC - .110 FASTON FLANGE MOUNT
產品類別:
Filters|Power Entry - Modules|L, Corcom
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | 1-6609122-9 |
| Subcategory | Power Entry Module |
| Lead Time | 84 Days |
| Features | Fuse Holder, Switch On/Off Non-Illuminated |
| Mounting Type | Panel Mount, Screw Hole |
| Termination Style | Quick Connect |
| Current | 6A |
| Fuse Drawer | Included |
| Voltage | 250VAC |
| Standard Package | 16 |
| Filter Type | RFI |
| Type | IEC 320-C14 (Male Pins) |
| rohs | Lead free / RoHS Compliant |
| Current Rating | 6A |
| Gender | Male |
| Operating Frequency | 50/60Hz |
| Switch Type | 2 Pole |
| Termination Method | Faston |
| Voltage Rating | 250 V ac |
| Factory Pack Quantity | 16 |
| Product | Inlets |
| Product Category | AC Power Entry Modules |
| Series | DL |
| Switch Function | Switched |
| Filtered | Yes |
| Mounting Style | Flange |
| Fused | Yes |
| Part # Aliases | 1-6609122-9 |
| RoHS | RoHS Compliant |
| Connector Mounting | :Flange |
| Contact Termination | :- |
| Capacitance | :47nF |
| Filter Terminals | :Quick Connect |
| No. of Outlets | :1 |
| Weight (kg) | 0.054 |
| Tariff No. | 85366910 |
| Brand/Series | LSeries |
| Capacitance,Cx | 0.0028μF |
| Capacitance,Cy | 0.047μF |
| Current,Leakage | 0.25/0.5mA |
| Current,Rating | 6A |
| CutOut,Panel | 1.122×2.201" |
| FilterType | ACLine,IEC |
| Frequency | 50/60Hz |
| HipotRating,LinetoGround | 2250VDC |
| HipotRating,LinetoLine | 1450VDC |
| Inductance | 0.27mH |
| MountMethod | Front |
| MountingType | Flanged |
| NumberofPoles | 3 |
| PEMType | Filter/Fuse/Switch |
| Resistance | 1.5Megohms(Discharge),6000Megohms(NoDischarge) |
| SwitchType | DPST |
| Temperature,Operating | -10to+40°C |
| Termination | Faston |
| TycoPartNumber | 1-6609122-9 |
| Version | Linear |
| Voltage,Rating | 250VAC |
