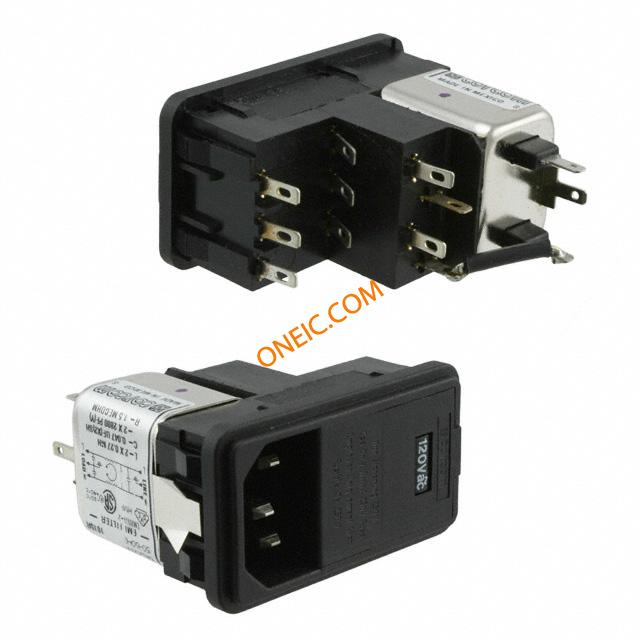

6EDL4C
AC Power Entry Modules 6A IEC - .110 FASTON SNAP IN MOUNT
廠商型號:
6EDL4C
芯天下內部編號:
35-6EDL4C
生產廠商:
TE Connectivity / Corcom
描述:
AC Power Entry Modules 6A IEC - .110 FASTON SNAP IN MOUNT
產品類別:
Filters|Power Entry - Modules|L, Corcom
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | 2-6609122-4, 6EDL4C |
| Subcategory | Power Entry Module |
| Lead Time | 84 Days |
| Features | Fuse Holder, Switch, Voltage Selector |
| Mounting Type | Panel Mount, Snap-In |
| Termination Style | Quick Connect |
| Current | 6A |
| Fuse Drawer | Included |
| Voltage | 100VAC |
| Standard Package | 16 |
| Filter Type | RFI |
| Type | IEC 320-C14 (Male Pins) |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 16 |
| Product | Inlets |
| Product Category | AC Power Entry Modules |
| Current Rating | 6 A |
| Filtered | Yes |
| Voltage Rating | 100 VAC |
| Series | L (2-6 A) |
| Switch Function | Not Switched |
| Mounting Style | Snap In |
| Fused | Yes |
| Part # Aliases | 2-6609122-4 |
| RoHS | RoHS Compliant |
| Brand/Series | LSeries |
| Current,Leakage | 0.5mA |
| Current,Rating | 6A |
| FilterType | ACLine,IEC |
| Frequency | 50/60Hz |
| Gender | Male |
| HipotRating,LinetoGround | 2250VDC |
| HipotRating,LinetoLine | 1450VDC |
| MountMethod | Front |
| MountingType | Snap-In |
| NumberofPoles | 2(Fuse) |
| PEMType | Filter |
| Termination | Faston |
| Version | Standard |
| Voltage,Rating | 100/120/220/240VAC |
| Leakage Current (Max) (120VAC, 60Hz)?(μA) | 250 |
| 安裝方式 | 扣入式 |
| Ground Choke Option | No |
| 連接器類型 | IEC 320/C-14 |
| 電壓（最大值）?(VAC) | 100, 120, 230, 240 |
| 保險絲選項 | 單 |
| 開關類型 | 無 |
| Leakage Current (Max) (250VAC, 50Hz)?(μA) | 500 |
| Ground Option | None |
| 額定電流?(A) | 6 |
| 注釋 | 可選擇電壓 |
| Input Type | IEC |
| 濾波器類型 | 電源輸入模塊 |
| 安裝角度 | 垂直 |
| 輸出類型 | .110 快速連接端子 |
| Voltage Selection | 4-Voltage |
| 工作溫度范圍?(°C) | -10 – 40 |
