84134000

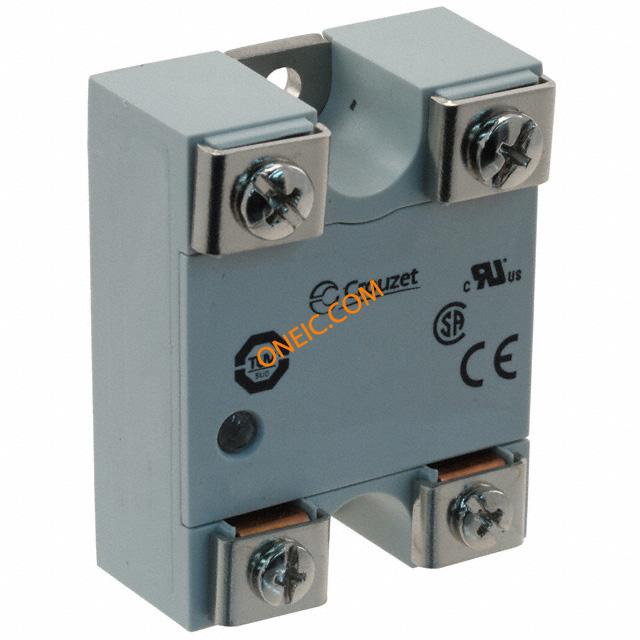

Solid State Relays - Industrial Mount 10A/240Vac DC In ZC

Thumbnail 84134000 Thumbnail 84134000 Thumbnail 84134000 Thumbnail 84134000
廠商型號: 84134000
芯天下內部編號: 85-84134000
生產廠商:
Crouzet Crouzet
描述: Solid State Relays - Industrial Mount 10A/240Vac DC In ZC
產品類別: Optoelectronics|Optocouplers / Photocouplers|Solid State Relays|Solid State Relays - Industrial Mount
客戶編號:
規格書: 查看PDF
瀏覽次數: 9

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Product Category Solid State Relays - Industrial Mount
RoHS RoHS Compliant
Control Voltage Range 4 VDC to 32 VDC
Load Voltage Rating 24 VAC to 280 VAC
Load Current Rating 10 A
Product Type Industrial Mount
Factory Pack Quantity 1
Relay Type Relay
Mounting Type Chassis Mount or Panel Mount
Load Current 10A
Voltage - Load 24 ~ 280 V
Termination Style Screw Terminal
Output Type AC, Zero Cross
Packaging Bulk
Circuit SPST-NO (1 Form A)
Standard Package 20
Voltage - Input 3 ~ 32VDC
Package/Case Hockey Puck
rohs Lead free / RoHS Compliant
Operating Voltage Min :24VAC
Operating Voltage Max :280VAC
Control Voltage DC Min :3VDC
Control Voltage DC Max :32VDC
Contact Configuration :(Not Applicable)
Switching Mode :Zero Crossing
Relay Terminals :Screw
SVHC :No SVHC (20-Jun-2013)
Control Voltage Type :DC
Current Rating :10A
Dropout Voltage Vdo :1VDC
External Depth :1.75"
External Length / Height :0.785"
Input Voltage Max :32VDC
Input Voltage Min :4VDC
Isolation Voltage :4kV
Leakage Current :15mA
Load Current Max :14mA
Load Current Min :7mA
Load Current RMS Max :10A
Operating Temperature Max :80°C
Operating Temperature Min :-20°C
Operating Voltage Range :24V AC to 280V AC
Output Voltage Max :280VAC
Output Voltage Min :24VAC
RMS Load Current Min :50mA
RMS Load Voltage Max :280VAC
RMS Load Voltage Min :24VAC
Series :GN
Single Cycle Surge Current :300A
Surge Current :80A
Terminal Type :Screw
Turn Off Time :8.33ms
Turn On Time :8.33ms
Weight (kg) 0.097
Tariff No. 85364900
