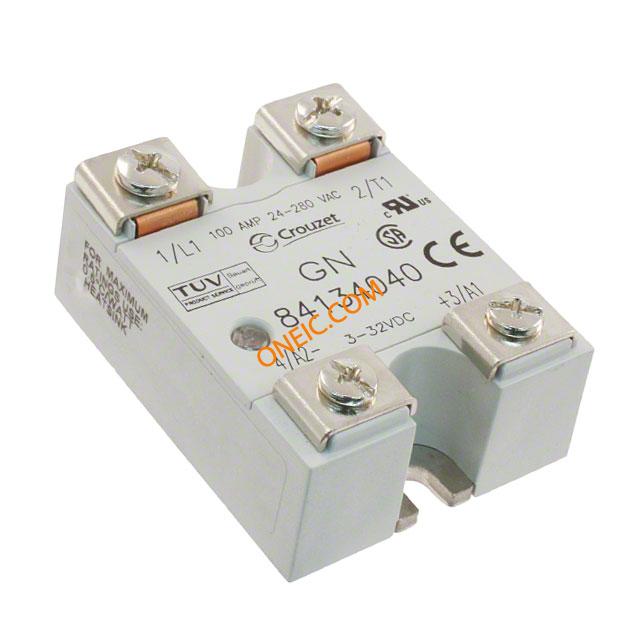

84134040
Solid State Relays - Industrial Mount 100A/240Vac DC In ZC
廠商型號:
84134040
芯天下內部編號:
85-84134040
生產廠商:
Crouzet
描述:
Solid State Relays - Industrial Mount 100A/240Vac DC In ZC
產品類別:
Optoelectronics|Optocouplers / Photocouplers|Solid State Relays|Solid State Relays - Industrial Mount
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Solid State Relays - Industrial Mount |
| RoHS | RoHS Compliant |
| Control Voltage Range | 4 VDC to 32 VDC |
| Load Voltage Rating | 24 VAC to 280 VAC |
| Load Current Rating | 100 A |
| Product Type | Industrial Mount |
| Factory Pack Quantity | 1 |
| Part # Aliases | GN84134040 |
| Relay Type | Relay |
| Mounting Type | Chassis Mount or Panel Mount |
| Load Current | 100A |
| Voltage - Load | 24 ~ 280 V |
| Termination Style | Screw Terminal |
| Output Type | AC, Zero Cross |
| Packaging | Bulk |
| Circuit | SPST-NO (1 Form A) |
| Standard Package | 20 |
| Voltage - Input | 3 ~ 32VDC |
| Package/Case | Hockey Puck |
| rohs | Lead free / RoHS Compliant |
| SubCategory | Solid State Relay |
| Switching | Zero Voltage |
| Mounting | Base Mount |
| Control Voltage | 3-32 VDC |
| MainCategory | Relays |
| Output Configuration | 1A NO |
| Load Voltage | 24-280 VAC |
