90075-0027

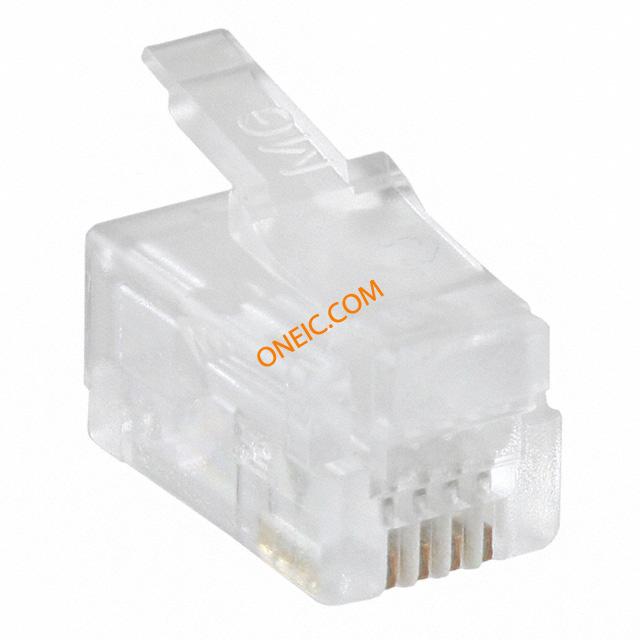

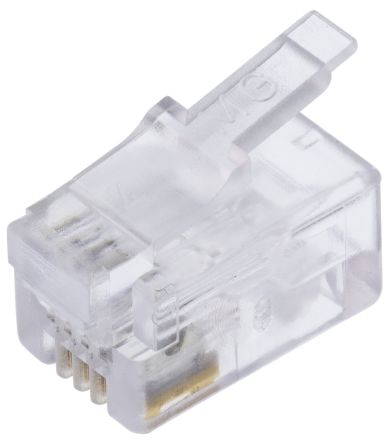

CONN MOD PLUG 4P4C UNSHIELDED
廠商型號:
90075-0027
芯天下內部編號:
256-90075-0027
生產廠商:
Molex Connector Corporation
描述:
CONN MOD PLUG 4P4C UNSHIELDED
產品類別:
Connectors, Interconnects|Modular Connectors - Plugs|90075
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Ratings | Cat3 |
| Current Rating | 1.5A |
| Number of Positions/Contacts | 4p4c (RJ9, RJ10, RJ22) |
| Voltage Rating | 125V |
| Color | Translucent - Clear |
| Cable Type | Flat Oval Cable, Not Specified |
| Packaging | Bulk |
| Contact Finish | Gold |
| Housing Material | Polycarbonate (PC) |
| Length | 0.524" (13.30mm) |
| Standard Package | 1 |
| Termination | IDC |
| Shielding | Unshielded |
| Contact Finish Thickness | 50μin (1.27μm) |
| Contact Material | Phosphor Bronze |
| Factory Pack Quantity | 10000 |
| Product Category | Modular Connectors / Ethernet Connectors |
| Gender | Male |
| Performance Category | Cat 3 |
| Number of Ports | 1 |
| Contact Plating | Gold |
| Series | 90075 |
| Part # Aliases | 0900750027 |
| RoHS | RoHS Compliant |
| Connector Type | :RJ10 |
| No. of Contacts | :4 |
| No. of Positions | :4 |
| No. of Ports | :1 |
| LAN Category | :Cat3 |
| Contact Termination | :IDC / IDT |
| SVHC | :No SVHC (20-Jun-2013) |
| Contact Resistance | :20mohm |
| External Length / Height | :12.32mm |
| External Width | :7.62mm |
| Flammability Rating | :UL94V-0 |
| Insulation Resistance | :500Mohm-m |
| Material | :Natural Polycarbonate |
| Operating Temperature Max | :60°C |
| Operating Temperature Min | :-40°C |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
