90075-0141
CONN MOD PLUG 8P8C UNSHIELDED
廠商型號:
90075-0141
芯天下內部編號:
256-90075-0141
生產廠商:
Molex Connector Corporation
描述:
CONN MOD PLUG 8P8C UNSHIELDED
產品類別:
Connectors|Modular Connectors / Ethernet Connectors

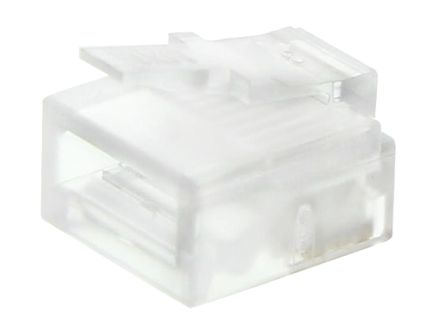

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Factory Pack Quantity | 8000 |
| Product Category | Modular Connectors / Ethernet Connectors |
| Shielding | Unshielded |
| USOC Codes | RJ45 |
| Voltage Rating | 125 V |
| Color | Clear |
| Gender | Male |
| Performance Category | Cat 3 |
| Housing Material | Polycarbonate (PC) |
| Number of Ports | 1 |
| Contact Plating | Gold |
| Series | 90075 |
| Current Rating | 1.5 A |
| Part # Aliases | 0900750141 |
| RoHS | RoHS Compliant |
| Connector Type | :RJ45 |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :1 |
| LAN Category | :Cat3 |
| Contact Termination | :Crimp |
| Contact Material | :Phosphor Bronze |
| Approval Bodies | :UL |
| Contact Resistance | :20mohm |
| External Length / Height | :12.32mm |
| External Width | :11.68mm |
| Flammability Rating | :UL94V-0 |
| Height | :12.32mm |
| Insulation Resistance | :500ohm |
| Material | :Natural Polycarbonate |
| Operating Temperature Max | :60°C |
| Operating Temperature Min | :-40°C |
| Termination Method | :IDC / IDT |
| Voltage Rating V DC | :125V |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
