9081-0-00-15-00-00-08-0

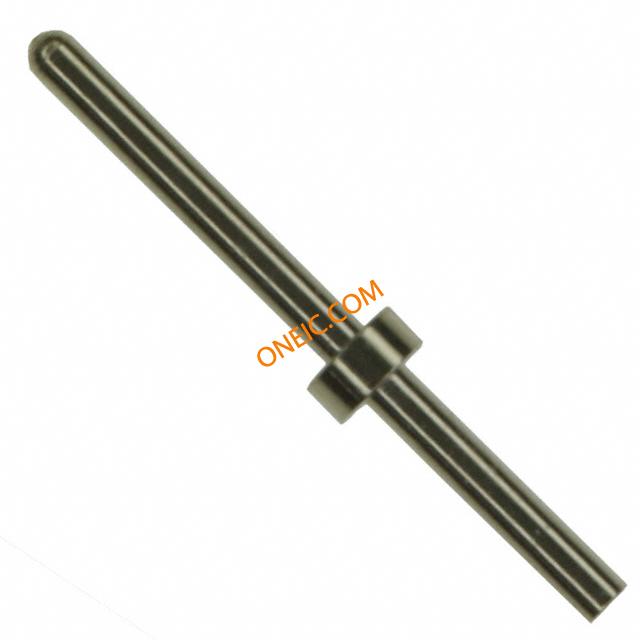

Circuit Board Hardware - PCB PC PIN .024 SOLDER
廠商型號:
9081-0-00-15-00-00-08-0
芯天下內部編號:
258-9081-0-00-15-00-00-08-0
生產廠商:
Mill-Max
描述:
Circuit Board Hardware - PCB PC PIN .024 SOLDER
產品類別:
Electromechanical|Hardware|Circuit Board Hardware - PCB
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Circuit Board Hardware - PCB |
| RoHS | RoHS Compliant |
| Packaging | Bulk |
| Factory Pack Quantity | 500 |
| Product Length | 8.01 |
| EU RoHS | Compliant |
| Product Depth | 1.14 |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Connector Type | Connector Headers and PCB Recepta... |
| Gender | PIN |
| Contact Plating | Gold Over Nickel |
| Termination Method | Solder |
| Contact Type | Signal |
| Contact Material | Brass Alloy |
| Length - Overall | 0.315" (8.00mm) |
| Flange Diameter | 0.045" (1.14mm) |
| Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.024" (0.61mm) |
| Contact Finish | Gold |
| Pin Size - Below Board | 0.020" (0.51mm) Dia |
| Standard Package | 500 |
| Insulation | Non-Insulated |
| Termination | Solder |
| Contact Finish Thickness | 10μin (0.25μm) |
| Terminal Type | Single End |
| Length - Tail | 0.170" (4.32mm) |
| rohs | Lead free / RoHS Compliant |
| Product | Pins |
| Material | Brass Alloy |
| Plating | Gold over Nickel |
| Length | 8.01 mm |
| Outside Diameter | 1.14 mm |
| Type | Solder Mount |
