9081-05-10

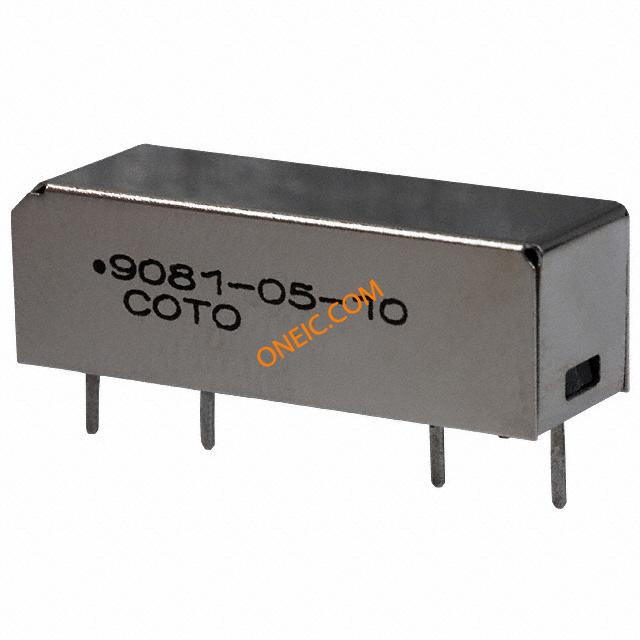

Reed Relays SPST .5A 5V SIP THRU HOLE
廠商型號:
9081-05-10
芯天下內部編號:
81-9081-05-10
生產廠商:
Coto Technology
描述:
Reed Relays SPST .5A 5V SIP THRU HOLE
產品類別:
Relays|Signal Relays, Up to 2 Amps|9000, Spartan
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Coil Current | 10mA |
| Coil Voltage | 5VDC |
| Turn On Voltage (Max) | 3.75 VDC |
| Features | Magnetic Shield |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 0.4 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Relay Type | Reed |
| Termination Style | PC Pin |
| Switching Voltage | 200VAC, 200VDC - Max |
| Release Time | 0.2ms |
| Packaging | Tube |
| Operating Temperature | -20°C ~ 85°C |
| Operate Time | 0.5ms |
| Contact Rating (Current) | 500mA |
| Standard Package | 18 |
| Mounting Type | Through Hole |
| Other Names | 306-1138 |
| Coil Resistance | 500 Ohms |
| SubCategory | Reed Relay |
| Mounting | PC Board |
| Switching Current | 0.5 Amps |
| Control Off Voltage (Min) | 0.4 VDC |
| Contact Configuration | 1A SPST-NO |
| MainCategory | Relays |
| Contact Rating @ Voltage | 0.5A @ 200 VAC/DC |
| Control On Voltage (Max) | 3.75 VDC |
