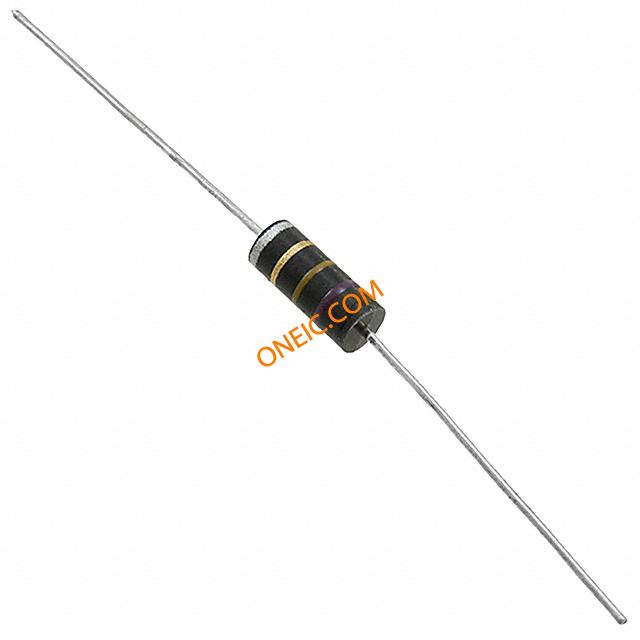

9310-06-RC

Ind RF Choke Molded 470nH 20% 25MHz 45Q-Factor Ferrite 1.225A AXL Bag

Thumbnail 9310-06-RC Thumbnail 9310-06-RC Thumbnail 9310-06-RC Thumbnail 9310-06-RC
廠商型號: 9310-06-RC
芯天下內部編號: 18-9310-06-RC
生產廠商:
bourns / j.w. miller bourns / j.w. miller
描述: Ind RF Choke Molded 470nH 20% 25MHz 45Q-Factor Ferrite 1.225A AXL Bag
產品類別: Inductor|Inductor Leaded
客戶編號:
規格書: 查看PDF
瀏覽次數: 1

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type RF Choke
Inductance 470 nH
Tolerance 20 %
Product Length 9.78 mm
Maximum DC Current 1.225 A
Lead Style Axial
Core Material Ferrite
Maximum DC Resistance 120 mOhm
Operating Temperature -55 to 105 °C
Minimum Quality Factor 45@25MHz
Standard Package Bulk
Product Category Fixed Inductors
RoHS RoHS Compliant
Self Resonant Frequency 310 MHz
Q Minimum 45
Dimensions 0.375 in L
Shielding Unshielded
Case Length 0.375 in
Factory Pack Quantity 1000
Maximum DC Resistance 120m
Product Length 9.78
EU RoHS Compliant
Minimum Self Resonant Frequency 310M
Maximum DC Current 1.225
Protection Style Molded
Product Diameter 4.21
Packaging Bag
Test Frequency 25M
Maximum Operating Temperature 105
Minimum Operating Temperature -55
Technology Wirewound
Current Rating 1.225A
DC Resistance (DCR) 120 mOhm Max
Material - Core Ferrite
Frequency - Self Resonant 310MHz
Size / Dimension 0.156" Dia x 0.375" L (3.96mm x 9.53mm)
Q @ Freq 45 @ 25MHz
Mounting Type Through Hole
Package / Case Axial
Frequency - Test 25MHz
Other Names 931006RC
rohs Lead free / RoHS Compliant
Case Diameter 0.156 in
Product Inductors
Lead Diameter 0.025 in
Operating Temperature Range - 55 C to + 105 C
Termination Style Axial
Test Frequency 25 MHz
Product Range :BOURNS - 9310 Series
Inductance Tolerance :± 20%
DC Resistance Max :0.12ohm
DC Current Rating :1.225A
Self Resonant Frequency Min :310MHz
Weight (kg) 0.002
Tariff No. 85339000
