9310-14-RC
Ind RF Choke Molded 1.2uH 10% 7.9MHz 33Q-Factor Ferrite 650mA AXL Bag
廠商型號:
9310-14-RC
芯天下內部編號:
18-9310-14-RC
生產廠商:
bourns / j.w. miller
描述:
Ind RF Choke Molded 1.2uH 10% 7.9MHz 33Q-Factor Ferrite 650mA AXL Bag
產品類別:
Inductor|Inductor Leaded

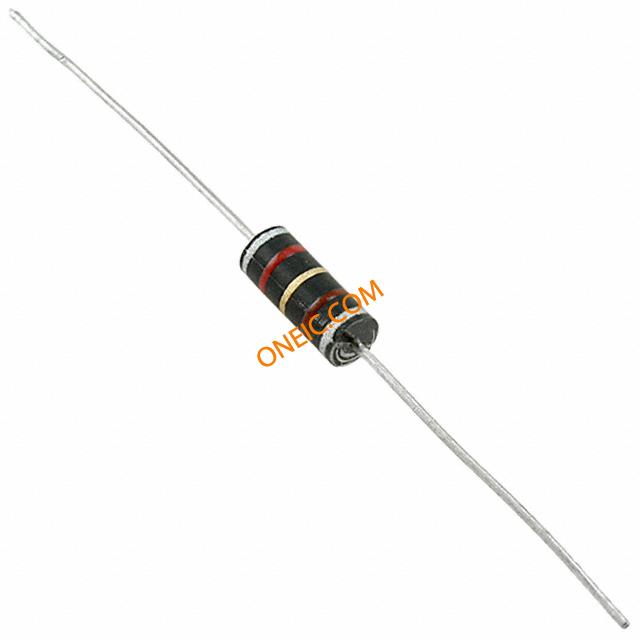

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RF Choke |
| Inductance | 1.2 uH |
| Tolerance | 10 % |
| Product Length | 9.78 mm |
| Maximum DC Current | 650 mA |
| Lead Style | Axial |
| Core Material | Ferrite |
| Maximum DC Resistance | 420 mOhm |
| Operating Temperature | -55 to 105 °C |
| Minimum Quality Factor | 33@7.9MHz |
| Standard Package | Bulk |
| Maximum DC Resistance | 420m |
| Product Length | 9.78 |
| EU RoHS | Compliant |
| Minimum Self Resonant Frequency | 180M |
| Maximum DC Current | 650m |
| Protection Style | Molded |
| Product Diameter | 4.21 |
| Packaging | Bag |
| Test Frequency | 7.9M |
| Maximum Operating Temperature | 105 |
| Minimum Operating Temperature | -55 |
| Technology | Wirewound |
| Current Rating | 650mA |
| DC Resistance (DCR) | 420 mOhm Max |
| Material - Core | Ferrite |
| Frequency - Self Resonant | 180MHz |
| Shielding | Unshielded |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) |
| Q @ Freq | 33 @ 7.9MHz |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Frequency - Test | 7.9MHz |
| Other Names | 931014RC |
| rohs | Lead free / RoHS Compliant |
| Case Diameter | 0.156 in |
| Product | Inductors |
| Product Category | Fixed Inductors |
| Dimensions | 0.156 in Dia. x 0.375 in L |
| Lead Diameter | 0.025 in |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | Axial |
| Self Resonant Frequency | 180 MHz |
| Q Minimum | 33 |
| Case Length | 0.375 in |
| Factory Pack Quantity | 1000 |
| Test Frequency | 7.9 MHz |
| RoHS | RoHS Compliant |
| Operating Temp Range | -55C to 105C |
| Lead Spacing | Not Required mm |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 10% |
| Impedance | Not Required ohm |
| Military Standard | Not Required |
| Product Length (mm) | 9.78 mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | Not Required mm |
| Quality Factor | 33 |
| DC Current | 650 mA |
| DC Resistance | 0.42 ohm |
| Product Diameter (mm) | 3.96 mm |
| DELETED | Compliant |
| Product Range | :BOURNS - 9310 Series |
| Inductance Tolerance | :± 10% |
| DC Current Rating | :650mA |
| DC Resistance Max | :0.42ohm |
| Case Dimensions | :3.96mm x 9.53mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Inductor Type | :Choke |
| No. of Pins | :2 |
| Q Factor | :33 |
| Q Test Frequency | :7.9MHz |
| Resonant Frequency | :180MHz |
| Self Resonant Frequency Min | :180MHz |
| Weight (kg) | 0.002 |
| Tariff No. | 85339000 |
