ABM3B-12.000MHZ-10-1-U-T

Crystal 12MHz 10pF 4-Pin CSMD T/R

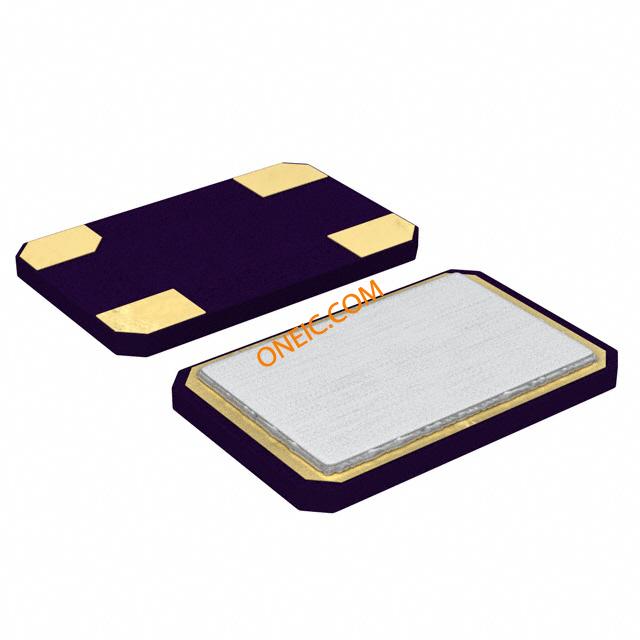

Thumbnail ABM3B-12.000MHZ-10-1-U-T Thumbnail ABM3B-12.000MHZ-10-1-U-T Thumbnail ABM3B-12.000MHZ-10-1-U-T Thumbnail ABM3B-12.000MHZ-10-1-U-T Thumbnail ABM3B-12.000MHZ-10-1-U-T
廠商型號: ABM3B-12.000MHZ-10-1-U-T
芯天下內部編號: 20-ABM3B-12-000MHZ-10-1-U-T
生產廠商:
abracon abracon
描述: Crystal 12MHz 10pF 4-Pin CSMD T/R
產品類別: Logic and Timing|Crystals
客戶編號:
規格書: 查看PDF
瀏覽次數: 5

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package 4CSMD
Standard Frequency 12 MHz
Frequency Tolerance ±10 ppm
Load Capacitance 10 pF
Type Crystal
Series Resistance 70 Ohm
Frequency Aging ±5 ppm/Year
Maximum Operating Temperature 60 °C
Mode of Oscillation Fundamental
Minimum Operating Temperature -10 °C
Mounting Surface Mount
Standard Package Tape & Reel
Frequency Stability ±10ppm
Mounting Type Surface Mount
Operating Mode Fundamental
ESR (Equivalent Series Resistance) 70 Ohm
Packaging Tape & Reel (TR)

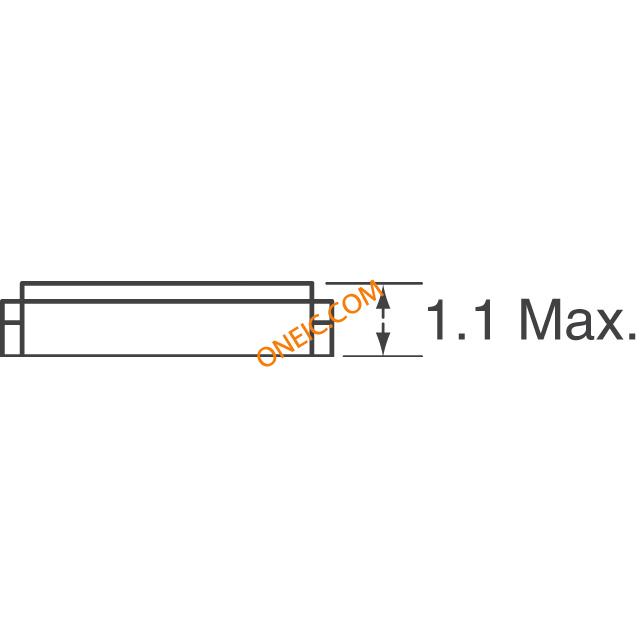

Height 0.043" (1.10mm)

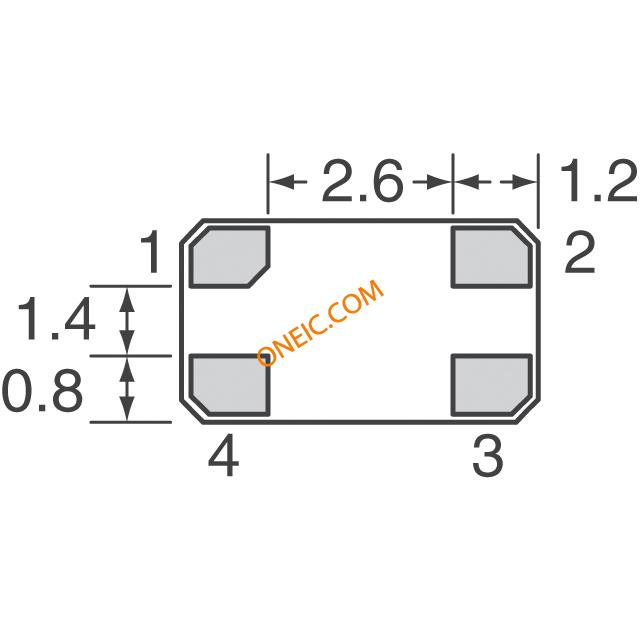

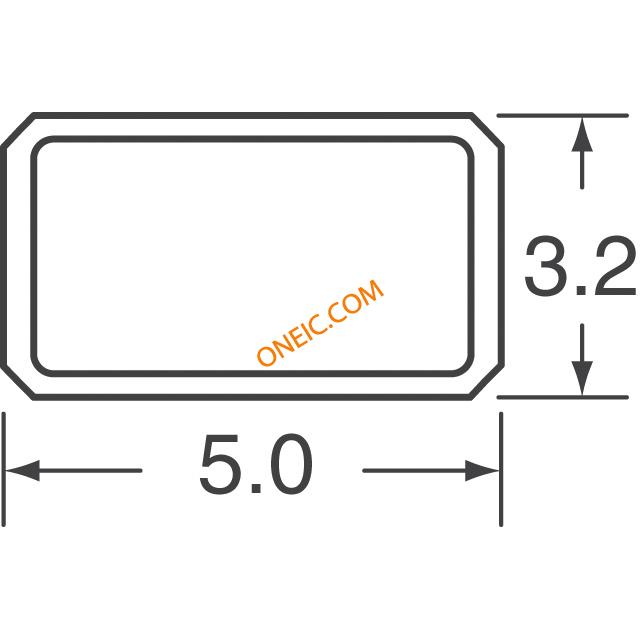

Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Operating Temperature -10°C ~ 60°C
Frequency 12MHz
Package / Case 4-SMD, No Lead (DFN, LCC)
rohs Lead free / RoHS Compliant
Other Names 300-8197-1
Factory Pack Quantity 1000
Product Category Crystals
Dimensions 3.2 mm W x 5 mm L x 1.1 mm H
Operating Temperature Range - 10 C to + 60 C
Series ABM3B
Termination Style SMD/SMT
Tolerance 10 PPM
RoHS RoHS Compliant By Exemption
Operating Temp Range -10C to 60C
Screening Level Commercial
ESR 70 ohm
Mounting Style Surface Mount
Product Length (mm) 5 mm
Product Depth (mm) 3.2 mm
Product Height (mm) 1.1 mm
