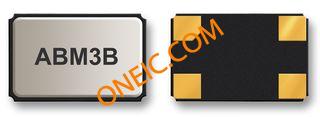

ABM3B-12.288MHZ-B2-T

Crystal 12.288MHz 18pF 4-Pin CSMD T/R

Thumbnail ABM3B-12.288MHZ-B2-T Thumbnail ABM3B-12.288MHZ-B2-T Thumbnail ABM3B-12.288MHZ-B2-T Thumbnail ABM3B-12.288MHZ-B2-T Thumbnail ABM3B-12.288MHZ-B2-T Thumbnail ABM3B-12.288MHZ-B2-T Thumbnail ABM3B-12.288MHZ-B2-T
廠商型號: ABM3B-12.288MHZ-B2-T
芯天下內部編號: 20-ABM3B-12-288MHZ-B2-T
生產廠商:
abracon abracon
描述: Crystal 12.288MHz 18pF 4-Pin CSMD T/R
產品類別: Logic and Timing|Crystals
客戶編號:
規格書: 查看PDF
瀏覽次數: 6

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package 4CSMD
Standard Frequency 12.288 MHz
Load Capacitance 18 pF
Type Crystal
Mounting Surface Mount
Standard Package Tape & Reel
Subcategory Not Specified
Packaging Tape and Reel
Lead Time 70 Days
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Mounting Type Surface Mount
Operating Mode Fundamental
ESR (Equivalent Series Resistance) 70 Ohm
Height 0.043" (1.10mm)
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Operating Temperature -20°C ~ 70°C
Frequency 12.288MHz
Package / Case 4-SMD, No Lead (DFN, LCC)
rohs Lead free / RoHS Compliant
Other Names 535-9117-6
Factory Pack Quantity 1000
Product Category Crystals
Dimensions 3.2 mm W x 5 mm L x 1.1 mm H
Operating Temperature Range - 20 C to + 70 C
Series ABM3B
Termination Style SMD/SMT
Mounting Style SMD/SMT
Tolerance 20 PPM
RoHS RoHS Compliant
Operating Temp Range -20C to 70C
Screening Level Commercial
ESR 70 ohm
Product Length (mm) 5 mm
Product Depth (mm) 3.2 mm
Product Height (mm) 1.1 mm
Mode of Oscillation Fundamental
Operating Temperature Min :-20°C
Operating Temperature Max :70°C
Crystal Mounting Type :SMD
Crystal Case Type :-
No. of Pins :4
Output Frequency :12.288MHz
Weight (kg) 0.00227
Tariff No. 85416000
Frequency stability ±50ppm
Body dimensions 5 x 3.2 x 1.1mm
Resonator type ceramic
Time stability ±5ppm/year
Multiplicity 1
Gross weight 1 g
Capacitance 18pF
Operating temperature -10...60°C
Collective package [pcs] 1000
Resonator tolerance ±50ppm
spg 1000
