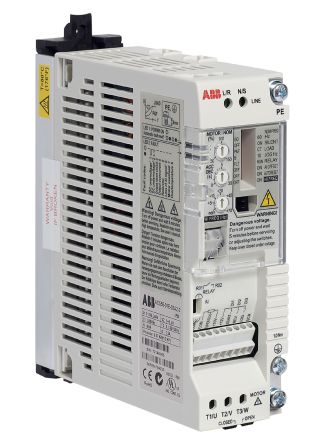

ACS55-01E-02A2-2
Motor speed controller,200-240Vac 0.37kW
廠商型號:
ACS55-01E-02A2-2
芯天下內部編號:
1073-ACS55-01E-02A2-2
生產廠商:
ABB
描述:
Motor speed controller,200-240Vac 0.37kW
產品類別:
Automation & Control Gear|Electric Motors, Motor Controllers & Peripherals|Inverter Drives
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Ambient Temperature | -20 → +40°C |
| Control Panel | Yes |
| Current Rating | 2.2 A |
| Filter Included | Yes |
| For Use With | ACS55 Series |
| IP Rating | IP20 |
| Output Frequency | 130Hz |
| Overall Depth | 128mm |
| Overall Length | 170mm |
| Overall Width | 45mm |
| Phase | 1 |
| Power Rating | 0.37 kW |
| Supply Voltage | 200 → 240 V |
| Supply Voltage Range | :200V AC to 240V AC |
| No. of Phases | :Single |
| Operating Temperature Min | :-20°C |
| Operating Temperature Max | :40°C |
| Approval Bodies | :CE, C-Tick, cUL, GOST-R, UL |
| External Depth | :128mm |
| External Length / Height | :170mm |
| External Width | :45mm |
| Height | :170mm |
| IP / NEMA Rating | :IP20 |
| Input Current | :6.9A |
| Mounting Type | :DIN Rail |
| Operating Temperature Range | :-20°C to +40°C |
| Output Current Max | :3.3A |
| Output Type | :3 Phase |
| Output Voltage Max | :240VAC |
| Output Voltage Min | :200VAC |
| Response Time | :60ms |
| Supply Voltage Max | :240VAC |
| Supply Voltage Min | :200VAC |
| Weight (kg) | 0.7 |
| Tariff No. | 85369010 |
