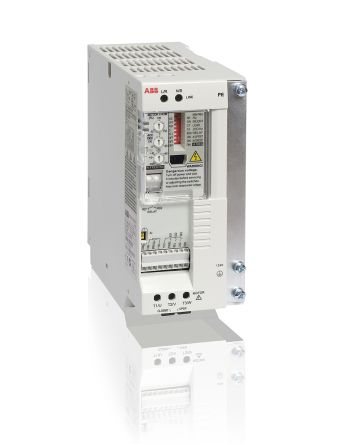

ACS55-01E-04A3-2
Motor speed controller,200-240Vac 0.75kW
廠商型號:
ACS55-01E-04A3-2
芯天下內部編號:
1073-ACS55-01E-04A3-2
生產廠商:
ABB
描述:
Motor speed controller,200-240Vac 0.75kW
產品類別:
Automation & Control Gear|Electric Motors, Motor Controllers & Peripherals|Inverter Drives
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Ambient Temperature | -20 → +40°C |
| Control Panel | Yes |
| Current Rating | 4.3 A |
| Filter Included | Yes |
| For Use With | ACS55 Series |
| IP Rating | IP20 |
| Output Frequency | 130Hz |
| Overall Depth | 128mm |
| Overall Length | 170mm |
| Overall Width | 67.5mm |
| Phase | 1 |
| Power Rating | 0.75 kW |
| Supply Voltage | 200 → 240 V |
| Supply Voltage Range | :200V AC to 240V AC |
| No. of Phases | :Single |
| Operating Temperature Min | :-20°C |
| Operating Temperature Max | :40°C |
| Approval Bodies | :CE, C-Tick, cUL, GOST-R, UL |
| External Depth | :128mm |
| External Length / Height | :170mm |
| External Width | :67.5mm |
| Height | :170mm |
| IP / NEMA Rating | :IP20 |
| Input Current | :10.8A |
| Mounting Type | :DIN Rail |
| Operating Temperature Range | :-20°C to +40°C |
| Output Current Max | :6.5A |
| Output Type | :3 Phase |
| Output Voltage Max | :240VAC |
| Output Voltage Min | :200VAC |
| Response Time | :60ms |
| Supply Voltage Max | :240VAC |
| Supply Voltage Min | :200VAC |
| Weight (kg) | 0.9 |
| Tariff No. | 85369010 |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| ACS55-01E-01A4-2 | ABB | Motor speed controller,200-240Vac 0.18kW | 查看詳情 |
| ACS55-01E-02A2-2 | ABB | Motor speed controller,200-240Vac 0.37kW | 查看詳情 |
| ACS55-01E-07A6-2 | ABB | Motor speed controller,200-240Vac 1.5kW | 查看詳情 |
| ACS55-01E-09A8-2 | ABB | Motor speed controller,200-240Vac 2.2kW | 查看詳情 |
