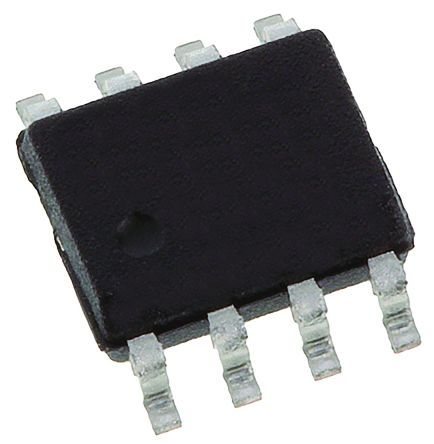

ADM660ARZ-REEL7
Charge Pump INV/STPUP -1.5V to -7V/5V to 14V 100mA 8-Pin SOIC N T/R
廠商型號:
ADM660ARZ-REEL7
芯天下內部編號:
1-ADM660ARZ-REEL7
生產廠商:
analog devices
描述:
Charge Pump INV/STPUP -1.5V to -7V/5V to 14V 100mA 8-Pin SOIC N T/R
產品類別:
Power Management|Charge Pump
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC N |
| Function | Inverting/Step Up |
| Output Current | 100(Min) mA |
| Output Voltage | -1.5 to -7|5 to 14 V |
| Operating Temperature | -40 to 85 °C |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Output Voltage | -1.5 to -7|5 to 14 |
| Packaging | Tape and Reel |
| Output Current | 100(Min) |
| Supplier Package | SOIC N |
| Screening Level | Industrial |
| Maximum Operating Supply Voltage | 7 |
| Minimum Operating Supply Voltage | 1.5 |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
| Number of Outputs | 1 |
| Synchronous Rectifier | No |
| Mounting Type | Surface Mount |
| Frequency - Switching | 25kHz, 120kHz |
| Supplier Device Package | 8-SOIC N |
| Output Type | Adjustable |
| Current - Output | 100mA |
| Voltage - Output | -1.5 V ~ -7 V, 3 V ~ 14 V |
| Type | Step-Up (Boost), Switched Capacitor (Charge Pump), Doubler, Inverting |
| Voltage - Input | 1.5 V ~ 7 V |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| Other Names | ADM660ARZ-REEL7CT |
| Converter Type | Inverting |
| Dimensions | 5 x 4 x 1.75mm |
| Efficiency | 80% |
| Height | 1.75mm |
| Length | 5mm |
| Maximum Input Voltage | 7 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Current | 100mA |
| Maximum Output Voltage | 14 V |
| Maximum Switching Frequency | 0.12 MHz |
| Minimum Input Voltage | 2.5 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | 5 V |
| Package Type | SOIC |
| Width | 4mm |
| Mounting Style | SMD/SMT |
| Switching Frequency | 25 kHz |
| Package / Case | SOIC-8 |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 85C |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 1.5 V |
| Operating Supply Voltage (Max) | 7 V |
| 最大輸出電流 | 100mA |
| 輸出數目 | 1 |
| 轉換器類型 | 反相 |
| 最高工作溫度 | +85 °C |
| 安裝類型 | 表面貼裝 |
| 最大輸出電壓 | 14 V |
| 高度 | 1.75mm |
| 最低工作溫度 | -40 °C |
| 最高開關頻率 | 0.12 MHz |
| 最小輸出電壓 | 5 V |
| 寬度 | 4mm |
| 封裝類型 | SOIC |
| 最小輸入電壓 | 2.5 V |
| 引腳數目 | 8 |
| 長度 | 5mm |
| 輸出類型 | 可調整的 |
| 最大輸入電壓 | 7 V |
| 尺寸 | 5 x 4 x 1.75mm |
| Factory Pack Quantity | 1000 |
| Series | ADM660 |
| Brand | Analog Devices |
| Input Voltage MAX | 7 V |
| Topology | Boost, Inverting |
