ADM660ARZ
Charge Pump INV/STPUP -1.5V to -7V/5V to 14V 100mA 8-Pin SOIC N
廠商型號:
ADM660ARZ
芯天下內部編號:
1-ADM660ARZ
生產廠商:
analog devices
描述:
Charge Pump INV/STPUP -1.5V to -7V/5V to 14V 100mA 8-Pin SOIC N
產品類別:
Power Management|Charge Pump

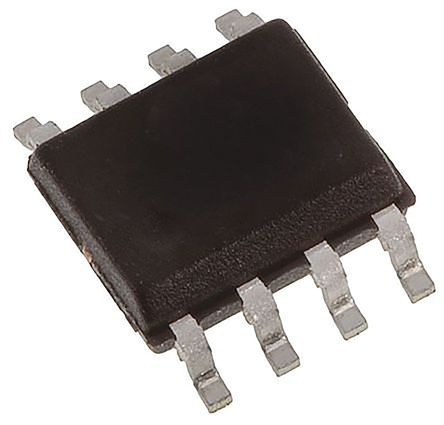

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC N |
| Function | Inverting/Step Up |
| Output Current | 100(Min) mA |
| Output Voltage | -1.5 to -7|5 to 14 V |
| Operating Temperature | -40 to 85 °C |
| Mounting | Surface Mount |
| Standard Package | Rail / Tube |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Package Height | 1.5(Max) |
| Output Voltage | -1.5 to -7|5 to 14 |
| Screening Level | Industrial |
| PCB | 8 |
| Package Width | 4(Max) |
| Supplier Package | SOIC N |
| Package Length | 5(Max) |
| Maximum Operating Supply Voltage | 7 |
| Output Current | 100(Min) |
| Minimum Operating Supply Voltage | 1.5 |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
| Number of Outputs | 1 |
| Synchronous Rectifier | No |
| Mounting Type | Surface Mount |
| Frequency - Switching | 25kHz, 120kHz |
| Supplier Device Package | 8-SOIC N |
| Output Type | Adjustable |
| Packaging | Tube |
| Current - Output | 100mA |
| Voltage - Output | -1.5 V ~ -7 V, 3 V ~ 14 V |
| Type | Step-Up (Boost), Switched Capacitor (Charge Pump), Doubler, Inverting |
| Voltage - Input | 1.5 V ~ 7 V |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| Converter Type | Inverting, Step Up |
| Dimensions | 5 x 4 x 1.5mm |
| Height | 1.5mm |
| Length | 5mm |
| Maximum Operating Supply Voltage | 7 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Voltage | 1.7 V, 14 V |
| Minimum Operating Supply Voltage | 1.5 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | 5 V, -7 V |
| Package Type | SOIC N |
| Width | 4mm |
| Factory Pack Quantity | 98 |
| Switching Frequency | 120 kHz |
| Series | ADM660 |
| Input Voltage | 1.5 V to 7 V |
| Shutdown | No |
| Package / Case | SOIC N |
| Supply Current | 4.5 mA |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 85C |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 1.5 V |
| Operating Supply Voltage (Max) | 7 V |
| Primary Input Voltage | :7V |
| No. of Outputs | :1 |
| Voltage Regulator Case Style | :SOIC |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Adjustable Output Voltage Max | :-7V |
| Adjustable Output Voltage Min | :-1.5V |
| Base Number | :660 |
| Dropout Voltage Vdo | :0.3V |
| Frequency | :120kHz |
| Operating Temperature Range | :-40°C to +85°C |
| Output Voltage Max | :14V |
| Supply Voltage Min | :1.5V |
| Termination Type | :SMD |
| Voltage Regulator Type | :Inverting / Doubler |
| Weight (kg) | 0.02 |
| Tariff No. | 85411000 |
