B84111FB120
FILTER LINE 250VAC 20A PANEL
廠商型號:
B84111FB120
芯天下內部編號:
125-B84111FB120
生產廠商:
EPCOS Inc
描述:
FILTER LINE 250VAC 20A PANEL
產品類別:
Filters|Line Filters|B84111F
客戶編號:
規格書:
查看PDF

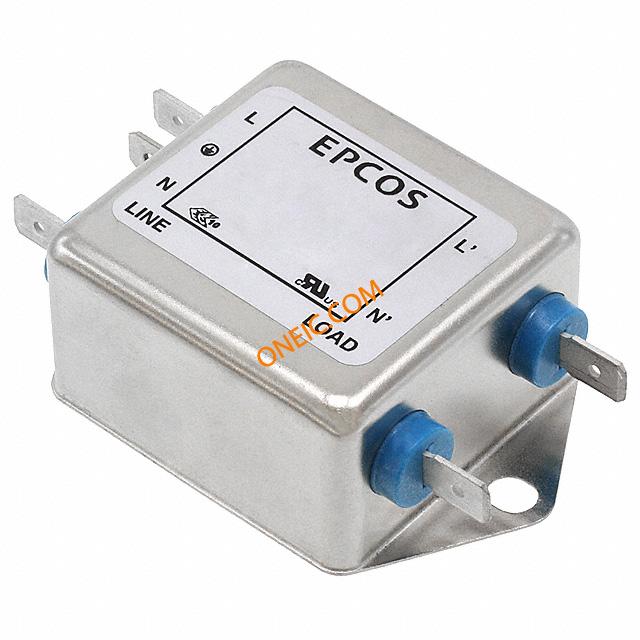

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Voltage - Rated AC | 250V |
| Mounting Type | Chassis |
| Approvals | ENEC, UL |
| Termination Style | Quick Connect |
| Voltage - Rated DC | 250V |
| Current | 20A |
| Applications | Medical |
| Standard Package | 30 |
| Filter Type | Single Phase |
| Configuration | Single Stage |
| Frequency - Operating | 50 ~ 60Hz |
| Depth | 74.6mm |
| Dimensions | 64 x 74.6 x 26mm |
| Height | 26mm |
| Length | 64mm |
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac/dc |
| Operating Frequency | 60Hz |
| rohs | Compliant |
| Current Rating | :20A |
| Voltage Rating | :250V |
| Leakage Current Max | :500μA |
| Capacitance | :0.1μF |
| Inductance Min | :0.43mH |
| Filter Terminals | :Quick Connect |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.013 |
| Tariff No. | 85322900 |
