BA56-12SYKWA
DISPLAY 590NM YLW 3DIG 0.56 TH
廠商型號:
BA56-12SYKWA
芯天下內部編號:
213-BA56-12SYKWA
生產廠商:
Kingbright Company LLC
描述:
DISPLAY 590NM YLW 3DIG 0.56 TH
產品類別:
Optoelectronics|Displays|LED Displays & Accessories
客戶編號:
規格書:
查看PDF

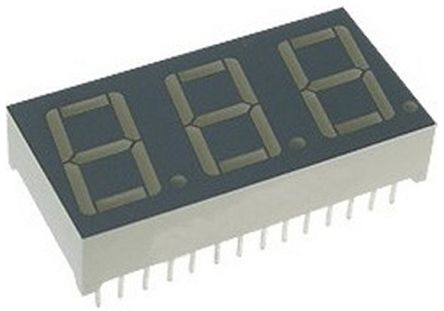

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Voltage - Forward (Vf) Typ | 2V |
| Display Type | 7-Segment |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Color | Yellow |
| Common Pin | Common Anode |
| Size / Dimension | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) |
| Millicandela Rating | 120mcd |
| Number of Characters | 3 |
| Wavelength - Peak | 590nm |
| Standard Package | 13 |
| Current - Test | 20mA |
| Power Dissipation (Max) | 75mW |
| Package/Case | 12-DIP (0.600", 15.24mm) |
| RoHS | RoHS Compliant |
| Package / Case | 12-DIP (0.600", 15.24mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| rohs | Lead free / RoHS Compliant |
| 表面顏色 | 灰色 |
| 字符數目 | 3 |
| 字符尺寸 | 14.2 x 8mm |
| 光強度 | 120 mcd |
| 字符高度 | 14.2mm |
| 最高工作溫度 | +85°C |
| 共用連接 | 陽極 |
| 外部寬度 | 37.6mm |
| 安裝類型 | 通孔安裝 |
| 段數 | 7 |
| 最低工作溫度 | -40°C |
| 外部深度 | 8.1mm |
| 外部高度 | 19mm |
| 工作溫度范圍 | -40 → +85°C |
| 外部尺寸 | 37.6 x 19 x 8.1mm |
| 字符寬度 | 8mm |
| 十進位方向 | 右側 |
| LED 顏色 | 黃色 |
| 顯示類型 | 7段 |
