BPV23NF
Photodiode PIN Chip 940nm 0.6A/W Sensitivity 2-Pin
廠商型號:
BPV23NF
芯天下內部編號:
5-BPV23NF
生產廠商:
vishay / semiconductor
描述:
Photodiode PIN Chip 940nm 0.6A/W Sensitivity 2-Pin
產品類別:
Optoelectronics|Infrared|Photodiode

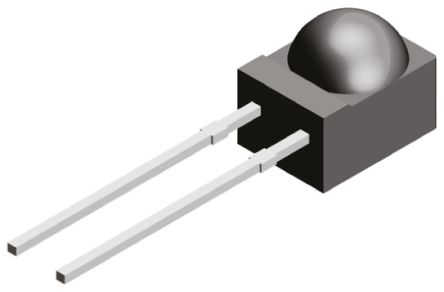

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Chip |
| Wavelength | 940 nm |
| Maximum Reverse Voltage | 60 V |
| Maximum Light Current | 65(Typ) uA |
| Maximum Rise Time Range | 15 to 250 ns |
| Maximum Dark Current | 30 nA |
| Photodiode Material | Si |
| Lens Type | Epoxy |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | 100 °C |
| Standard Package | Bulk |
| Product Category | Photodiodes |
| RoHS | RoHS Compliant |
| Product | PIN Photodiodes |
| Reverse Voltage | 60 V |
| Peak Wavelength | 940 nm |
| Rise Time | 70 ns |
| Fall Time | 70 ns |
| Half Intensity Angle Degrees | 60 deg |
| Dark Current | 2 nA |
| Mounting Style | Through Hole |
| Noise Equivalent Power - NEP | 4E-14 W/sqrt Hz |
| Packaging | Bulk |
| Photocurrent | 65 uA |
| Power Dissipation | 215 mW |
| Responsivity | 0.6 A/W |
| Factory Pack Quantity | 4000 |
| Polarity | Forward |
| Maximum Light Current | 65(Typ) |
| Mounting | Through Hole |
| Package Width | 5 |
| PCB | 2 |
| Maximum Power Dissipation | 215 |
| EU RoHS | Compliant |
| Photo Sensitivity | 0.6A/W |
| Maximum Reverse Voltage | 60 |
| Maximum Fall Time | 70(Typ) |
| Photodiode Type | PIN |
| Maximum Dark Current | 30 |
| Peak Wavelength | 940 |
| Minimum Operating Temperature | -55 |
| Maximum Operating Temperature | 100 |
| Maximum Forward Voltage | 1.3 |
| Package Length | 4.5 |
| Pin Count | 2 |
| Package Height | 6 |
| Maximum Rise Time | 70(Typ) |
| Matchcode | BPV23NF |
| Detection angle | 60° |
| Sensitive Area | 5.7mm2 |
| Package | SIDEVIEW |
| Unit Pack | 1000 |
| Standard Leadtime | 6 weeks |
| MOQ | 4000 |
| Sens.range min | 215nm |
| Rise/Fall time | 0.07ns |
| SMD/THT | THT |
| Dark current | 0.045nA |
| Automotive | NO |
| Max.sensivity | 940nm |
| Sens.range max. | 120nm |
| Spectral Range | 870nm ~ 1050nm |
| Active Area | 4.4mm2 |
| Current - Dark (Typ) | 2nA |
| Package / Case | Radial, Side View |
| Viewing Angle | 120° |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - DC Reverse (Vr) (Max) | 60V |
| Other Names | 751-1009 |
| Diode Type | PIN |
| rohs | Lead free / RoHS Compliant |
| Forward Current | 50 mA |
| Operating Temp Range | -55C to 100C |
| Dark Current (Max) | 30 nA |
| Light Current | 65 uA |
| Operating Temperature Classification | Industrial |
| Forward Voltage | 1.3 V |
| Reverse Breakdown Voltage | 60 V |
| Rad Hardened | No |
| DELETED | Compliant |
| Wavelength of Peak Sensitivity | :940nm |
| Angle of Half Sensitivity ± | :60° |
| Diode Case Style | :Radial Leaded |
| No. of Pins | :2 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :100°C |
| Breakdown Voltage Vbr | :60V |
| Operating Temperature Range | :-40°C to +100°C |
| Reverse Voltage Vr Max | :60V |
| Sensitivity | :0.6A/W |
| Wavelength Typ | :940nm |
| Weight (kg) | 2.27 |
| Tariff No. | 85411000 |
