BZ-2RQ124-D6
Basic / Snap Action Switches 15A 250Vac SPDT H-OVRTRV PLGR B SW
廠商型號:
BZ-2RQ124-D6
芯天下內部編號:
159-BZ-2RQ124-D6
生產廠商:
Honeywell
描述:
Basic / Snap Action Switches 15A 250Vac SPDT H-OVRTRV PLGR B SW
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches

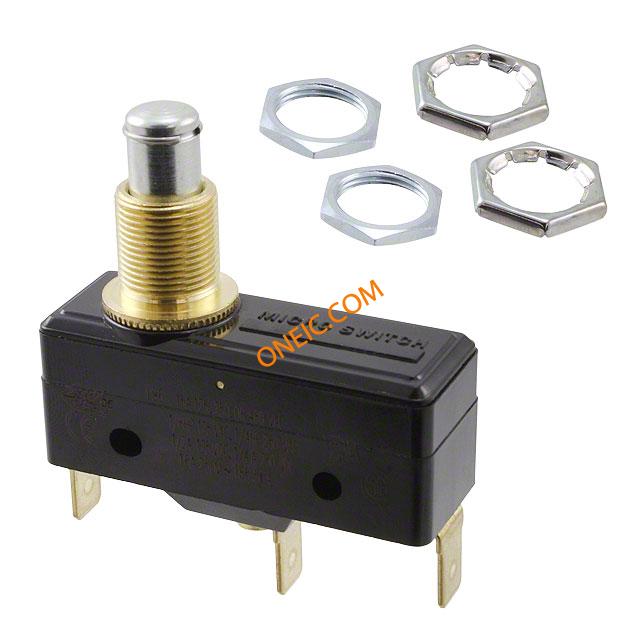

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Contact Form | SPDT |
| Actuator | Plunger |
| Current Rating | 15 A |
| Voltage Rating AC | 250 V |
| Operating Force | 2.5 N to 3.61 N |
| Termination Style | Quick Connect |
| Series | BZ |
| Type | Basic |
| Actuator Style | Plunger |
| Product Length | 49.28 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 121 |
| Maximum DC Voltage Rating | 250 |
| Product Depth | 17.45 |
| Mounting | Panel Mount |
| Switch Configuration | N.O./N.C. |
| Product Height | 58.65 |
| Maximum Power Rating | 186.42 |
| Pole Throw Configuration | SPDT |
| Base/Housing Material | N/A/General Purpose Phenolic |
| Maximum AC Voltage Rating | 480 |
| Operating Force | 3.61 |
| Terminal Type | Quick Connect |
| Minimum Operating Temperature | -55 |
| Maximum Current Rating | 16@250VAC |
| Actuator Material | Steel |
| Contact Material | Silver |
| Packaging | Bulk |
| Differential Travel | 0.002" (0.05mm) |
| Switch Function | On-Mom |
| Operating Force, Torque | 255 ~ 368gf |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Operating Position | 0.859" (21.8mm) |
| Overtravel | 0.219" (5.6mm) |
| Operating Temperature | -55°C ~ 121°C |
| Actuator Type | Overtravel Plunger |
| Standard Package | 5 |
| Voltage Rating - DC | 125V |
| Ingress Protection | * |
| Pretravel | 0.015" (0.4mm) |
| Release Force | 113gf |
| Mechanical Life | 20,000,000 Cycles |
| Circuit | SPDT |
| Features | Steel Plunger |
| rohs | Lead free / RoHS Compliant |
| Switch Type | MICRO SWITCHa?￠ Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L] |
| Sealed | No |
| Ampere Rating | 15 A |
| Circuitry | SPDT |
| Termination | Quick Connect |
| Operating Temperature | -55 ?°C to 121 ?°C [-67 ?°F to 250 ?°F] |
| Voltage | 250 Vac |
| Contact Type | Silver |
| Operating Force (OF) | 2,50 N to 3,61 N [9 oz to 13 oz] max. |
| Overtravel (OT) | 5,56 mm [0.219 in] min. |
| Differential Travel (DT) | 0,01 mm to 0,05 mm [0.0004 in to 0.0020 in] |
| Material | Plastic |
| Housing Material | General Purpose Phenolic |
| Agency Approvals and Standards | UL, CSA, ENEC |
| Mounting Screw Size | 3,53 mm [0.139 in] |
| Mounting Centers | 25,4 mm [1 in] |
| Tightening Torque | 0,33 N m [3.0 in lb] |
| Weight | 24,94 g to 34,01 g [0.055 lb to 0.075 lb] |
| Package Height | 24,1 mm [0.95 in] |
| Package Width | 17,5 mm [0.69 in] |
| Package Length | 49,3 mm [1.94 in] |
| Recommended For | Operating in temperature to 121 °C [250 °F] |
| Comment | CE: 61058-1; UL: E12252; CSA: LR41370; 90 degree quick connect terminals used with A2 (step) base |
| UNSPSC Code | 39122209 |
| UNSPSC Commodity | 39122209 Snap switches |
| Series Name | BZ/BA/WA/YZ |
