BZ-2RQ172-D6

Basic / Snap Action Switches LARGE BASICS

廠商型號: BZ-2RQ172-D6
芯天下內部編號: 159-BZ-2RQ172-D6
生產廠商:
Honeywell Honeywell
描述: Basic / Snap Action Switches LARGE BASICS
產品類別: Electromechanical|Switches|Basic / Snap Action Switches
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

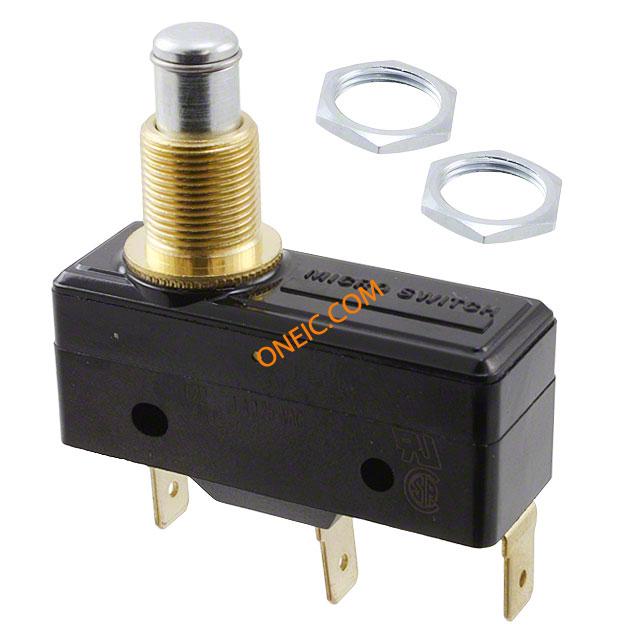

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Series BZ
Type Basic
Packaging Bulk
Differential Travel 0.002" (0.05mm)
Switch Function On-Mom
Current Rating 1A (AC)
Operating Force, Torque 255 ~ 368gf
Mounting Type Panel Mount
Voltage Rating - AC 125V
Termination Style Quick Connect - 0.250" (6.3mm)
Operating Position 0.859" (21.8mm)
Overtravel 0.219" (5.6mm)
Operating Temperature -55°C ~ 85°C
Actuator Type Overtravel Plunger
Standard Package 5
Ingress Protection *
Pretravel 0.015" (0.4mm)
Release Force 113gf
Mechanical Life 20,000,000 Cycles
Circuit SPDT
Features Steel Plunger
rohs Lead free / RoHS Compliant
Operating Force 0.5 N
Switch Type MICRO SWITCHa?￠ Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L]
Sealed No
Ampere Rating 1 A
Circuitry SPDT
Actuator High Overtravel Plunger
Termination Quick Connect
Operating Temperature -55 ?°C to 85 ?°C [-67 ?°F to 185 ?°F]
Voltage 125 Vac
Contact Type Gold
Operating Force (OF) 2,53 N to 3,65 N [9 oz to 13 oz] max.
Overtravel (OT) 5,56 mm [0.219 in] min.
Differential Travel (DT) 0,01 mm to 0,05 mm [0.0004 in to 0.0020 in]
Material Plastic
Housing Material General Purpose Phenolic
Agency Approvals and Standards UL, CSA, ENEC
Mounting Screw Size 3,53 mm [0.139 in]
Mounting Centers 25,4 mm [1 in]
Tightening Torque 0,33 N m [3.0 in lb]
Weight 24,94 g to 34,01 g [0.055 lb to 0.075 lb]
Package Height 24,1 mm [0.95 in]
Package Width 17,5 mm [0.69 in]
Package Length 49,3 mm [1.94 in]
Comment CE: 61058-1; UL: E12252; CSA: LR41370; 90 degree quick connect terminals used with A2 (step) base
UNSPSC Code 39122209
UNSPSC Commodity 39122209 Snap switches
Series Name BZ/BA/WA/YZ
