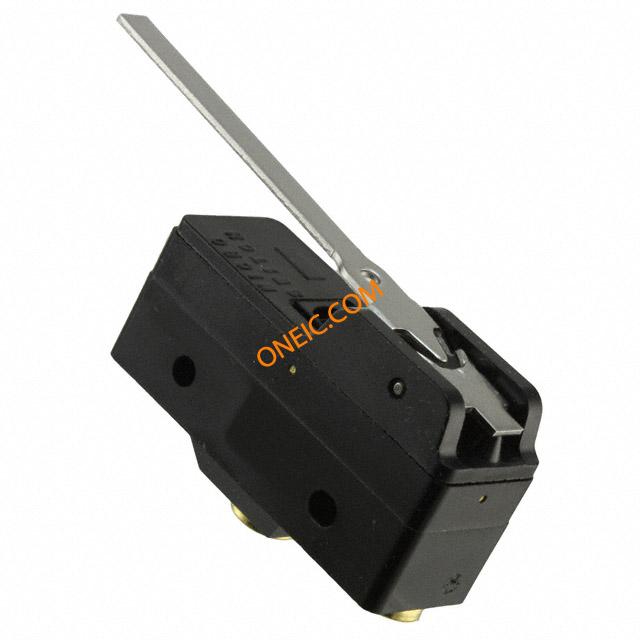

BZ-RW8435-A2
Basic / Snap Action Switches 10A @ 125 VAC SPDT Screw
廠商型號:
BZ-RW8435-A2
芯天下內部編號:
159-BZ-RW8435-A2
生產廠商:
Honeywell
描述:
Basic / Snap Action Switches 10A @ 125 VAC SPDT Screw
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Basic / Snap Action Switches |
| RoHS | RoHS Compliant |
| Contact Form | SPDT |
| Actuator | Lever |
| Current Rating | 10 A |
| Voltage Rating AC | 480 V |
| Operating Force | 0.7 N |
| Termination Style | Screw |
| Series | BZ |
| Tradename | Microswitch |
| Type | Basic |
| Actuator Style | Lever |
| Electrical Life | 100000 |
| EU RoHS | Compliant |
| Pole Throw Configuration | SPDT |
| Mounting | Screw Mount |
| Switch Configuration | N.O./N.C. |
| Maximum Current Rating | 15 |
| Product Depth | 17.5 |
| Operating Force | 0.07 |
| Terminal Type | Screw |
| Subcategory | Switch Snap Action |
| Lead Time | 28 Days |
| Packaging | Bulk |
| Differential Travel | 0.015" (0.38mm) |
| Switch Function | On-Mom |
| Operating Force, Torque | 7gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 125V |
| Operating Position | 0.750" (19.1mm) |
| Overtravel | 0.219" (5.6mm) |
| Operating Temperature | -55°C ~ 85°C |
| Actuator Type | Lever, Straight |
| Standard Package | 5 |
| Ingress Protection | * |
| Pretravel | 0.266" (6.75mm) |
| Mechanical Life | 20,000,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Switch Type | MICRO SWITCHa?￠ Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L] |
| Sealed | No |
| Ampere Rating | 10 A |
| Circuitry | SPDT |
| Termination | Screw |
| Operating Temperature | -55 ?°C to 85 ?°C [-67 ?°F to 185 ?°F] |
| Voltage | 250 Vac |
| Actuator Length | 63,5 mm [2.5 in] |
| Contact Type | Silver |
| Operating Force (OF) | 7 gf max. |
| Overtravel (OT) | 5,56 mm [0.219 in] min. |
| Differential Travel (DT) | 0,08 mm [0.003 in] max. |
| Material | Plastic |
| Housing Material | General Purpose Phenolic |
| Agency Approvals and Standards | UL, CSA, ENEC |
| Mounting Screw Size | 3,53 mm [0.139 in] |
| Mounting Centers | 25,4 mm [1 in] |
| Tightening Torque | 0,33 N m [3.0 in lb] |
| Weight | 24,94 g to 34,01 g [0.055 lb to 0.075 lb] |
| Package Height | 24,1 mm [0.95 in] |
| Package Width | 17,5 mm [0.69 in] |
| Package Length | 49,3 mm [1.94 in] |
| Comment | CE: 61058-1; UL: E12252; CSA: LR41370; Bottom facing #6 screws and cup washers |
| UNSPSC Code | 39122209 |
| UNSPSC Commodity | 39122209 Snap switches |
| Series Name | BZ/BA/WA/YZ |
