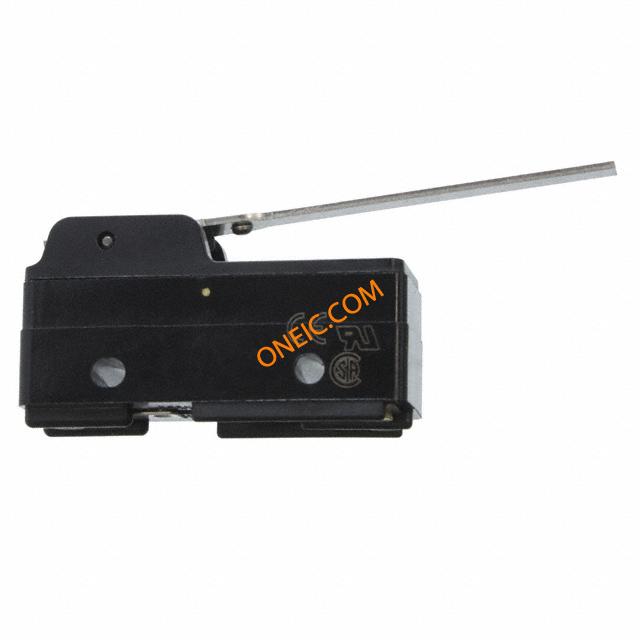

BZ-RW8435
Basic / Snap Action Switches SPDT 10A Leaf Lever
廠商型號:
BZ-RW8435
芯天下內部編號:
159-BZ-RW8435
生產廠商:
Honeywell
描述:
Basic / Snap Action Switches SPDT 10A Leaf Lever
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Basic / Snap Action Switches |
| RoHS | RoHS Compliant |
| Contact Form | SPDT |
| Actuator | Lever |
| Current Rating | 10 A |
| Voltage Rating AC | 277 V |
| Operating Force | 7 g |
| Termination Style | Screw |
| Series | BZ |
| Type | Basic |
| Actuator Style | Lever |
| Product Length | 74.78 |
| EU RoHS | Compliant |
| Pole Throw Configuration | SPDT |
| Mounting | Screw Mount |
| Switch Configuration | N.O./N.C. |
| Maximum Current Rating | 10@277VAC |
| Maximum Power Rating | 186.42 |
| Product Depth | 17.45 |
| Maximum AC Voltage Rating | 277 |
| Product Height | 32.16 |
| Terminal Type | Quick Connect |
| Operating Force | 0.07 |
| Packaging | Bulk |
| Differential Travel | 0.015" (0.38mm) |
| Switch Function | On-Mom |
| Operating Force, Torque | 7gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 125V |
| Operating Position | 0.750" (19.1mm) |
| Overtravel | 0.219" (5.6mm) |
| Operating Temperature | -55°C ~ 85°C |
| Actuator Type | Lever, Straight |
| Standard Package | 5 |
| Ingress Protection | * |
| Pretravel | 0.266" (6.75mm) |
| Mechanical Life | 20,000,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
