CRCW0603261KFKEA
Res Thick Film 0603 261K Ohm 1% 1/10W ±100ppm/°C Molded SMD SMD Paper T/R
廠商型號:
CRCW0603261KFKEA
芯天下內部編號:
5-CRCW0603261KFKEA
生產廠商:
vishay / dale
描述:
Res Thick Film 0603 261K Ohm 1% 1/10W ±100ppm/°C Molded SMD SMD Paper T/R
產品類別:
Resistor|Resistor Fixed Single-Surface Mount
客戶編號:
規格書:
查看PDF

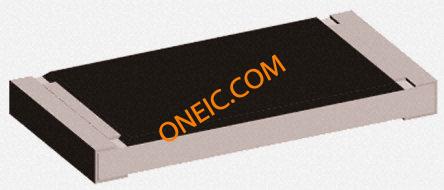

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Case Size | 0603 |
| Type | Thick Film |
| Resistance Value | 261 KOhm |
| Tolerance | 1 % |
| Power Rating | 1/10 W |
| Case Style | Molded |
| Operating Temperature | -55 to 155 °C |
| Temperature Coefficient | ±100 ppm/°C |
| Lead Finish | Tin |
| Standard Package | Tape & Reel |
| Resistance Value | 261K |
| EU RoHS | Compliant |
| Product Depth | 0.85 |
| Mounting | Surface Mount |
| Temperature Coefficient | ±100 |
| Current Sensing | No |
| Product Length | 1.55 |
| Product Height | 0.45 |
| Packaging | Paper Tape and Reel |
| Power Rating | 0.1 (1/10) |
| Anti-Surge | No |
| Fail Safe Fusible Resistor | No |
| Technology | Thick Film |
| Package/Case | 0603 |
| Resistance (Ohms) | 261k |
| Features | Automotive AEC-Q200 Qualified |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 (1608 Metric) |
| Height | 0.020" (0.50mm) |
| Size / Dimension | 0.061" L x 0.033" W (1.55mm x 0.85mm) |
| Power (Watts) | 0.1W, 1/10W |
| Package / Case | 0603 (1608 Metric) |
| Composition | Thick Film |
| rohs | Lead free / RoHS Compliant |
| Other Names | 541-261KHCT |
| Depth | 0.85mm |
| Dimensions | 1.55 x 0.85 x 0.45mm |
| Length | 1.55mm |
| Maximum Operating Temperature | +155°C |
| Maximum Temperature Coefficient | +100ppm/°C |
| Minimum Operating Temperature | -55°C |
| Minimum Temperature Coefficient | -100ppm/°C |
| Resistance | 261kΩ |
| Factory Pack Quantity | 5000 |
| Product | Thick Film Resistors SMD |
| Product Category | Thick Film Resistors |
| Voltage Rating | 75 V |
| Series | CRCW |
| Case Code - mm | 1608 |
| Operating Temperature Range | - 55 C to + 155 C |
| Unit Weight | 0.000071 oz |
| Case Length | 1.55 mm |
| Case Code - in | 0603 |
| Case Height | 0.45 mm |
| Case Width | 0.85 mm |
| RoHS | RoHS Compliant By Exemption |
| Operating Temp Range | -55C to 155C |
| Failure Rate | Not Required |
| Construction | Rectangular |
| Tolerance (+ or -) | 1% |
| Power Rating(s) | 1/10 W |
| Product Length (mm) | 1.55 mm |
| Product Depth (mm) | 0.85 mm |
| Product Height (mm) | 0.45 mm |
| DELETED | Compliant |
| Termination Style | Not Required |
| Military Standard | Not Required |
| Product Range | :VISHAY - CRCW Series |
| Resistance Tolerance | :± 1% |
| Resistor Case Style | :0603 ^1608 Metric] |
| Resistor Element Type | :Thick Film |
| No. of Pins | :2 |
| Weight (kg) | 0.002 |
| Tariff No. | 85331000 |
| Material,Element | ThickFilm |
| PackageType | 0603(1608mm) |
| Power,Rating | 0.1W |
| Termination | SMT |
