DK1A1B-L2-5V
General Purpose Relays 8A 5VDC DPST-NO/NC
廠商型號:
DK1A1B-L2-5V
芯天下內部編號:
282-DK1A1B-L2-5V
生產廠商:
Panasonic Electric Works
描述:
General Purpose Relays 8A 5VDC DPST-NO/NC
產品類別:
Electromechanical|Relays|General Purpose Relays
客戶編號:
規格書:
查看PDF

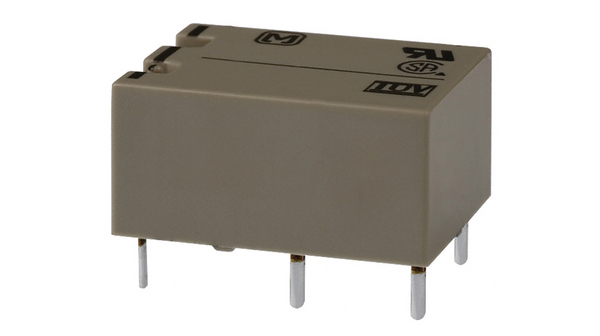

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant By Exemption |
| Contact Form | 1 Form A (SPST-NO), 1 Form B (SPST-NC) |
| Coil Voltage | 5 V |
| Coil Resistance | 125 Ohms |
| Coil Current | 40 mA |
| Mounting Style | Through Hole |
| Contact Material | Silver Nickel |
| Coil Termination | Solder Terminal |
| Coil Type | Dual Coil Latching |
| Contact Termination | Solder Terminal |
| Packaging | Bulk |
| Power Consumption | 200 mW |
| Factory Pack Quantity | 50 |
| Type | Miniature Power Relay |
| Relay Construction | Latching Double Coil |
| Coil Suppression Diode | No |
| Mounting | Through Hole |
| Termination Style | PC Pin |
| Maximum Current Rating | 8 |
| Maximum DC Voltage Rating | 125 |
| Coil Current | 40 |
| Contact Arrangement | SPST-NO|SPST-NC |
| Push to Test Button | No |
| Minimum Operating Temperature | -40 |
| Product Length | 20 |
| Maximum Operating Temperature | 65 |
| Maximum Power Rating | 240W|2kVA |
| EU RoHS | Compliant |
| Coil Resistance | 125 |
| Operate Time | 10 |
| DC Coil Voltage | 5 |
| Product Depth | 15 |
| Number of Terminals | 7 |
| Maximum AC Voltage Rating | 250 |
| Product Height | 10 |
| Seal | Sealed |
| Maximum Pick-Up Voltage | 3.5VDC |
| LED Indicator | No |
| Turn On Voltage (Max) | 3.5 VDC |
| Features | Sealed - Fully |
| Coil Power | 200 mW |
| Relay Type | General Purpose |
| Switching Voltage | 250VAC, 125VDC - Max |
| Release Time | 8ms |
| Operating Temperature | -40°C ~ 65°C |
| Operate Time | 10ms |
| Contact Rating (Current) | 8A |
| Standard Package | 50 |
| Mounting Type | Through Hole |
| rohs | Lead free / RoHS Compliant |
| Product Range | :PANASONIC EW - DK Series |
| Contact Current | :10A |
| Contact Voltage VAC | :250V |
| Contact Voltage VDC | :30V |
| Contact Configuration | :SPST-NO / SPST-NC |
| Weight (kg) | 0 |
| Tariff No. | 85364110 |
