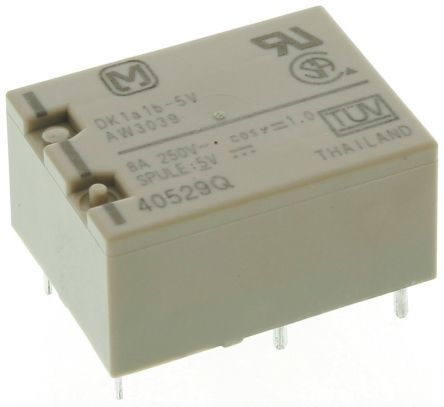

DK1A1B5
PCB mini relay,SPNO+SPNC,8A 5Vdc
廠商型號:
DK1A1B5
芯天下內部編號:
282-DK1A1B5
生產廠商:
Panasonic
描述:
PCB mini relay,SPNO+SPNC,8A 5Vdc
產品類別:
Relays|General Purpose Relays|Non-Latching Relays
客戶編號:
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Application | Power |
| Coil Power | 200mW |
| Coil Resistance | 125 Ω |
| Coil Voltage | 5V dc |
| Contact Configuration | SPST-NC, SPST-NO |
| Contact Material | Gold Plated Silver Nickel |
| Depth | 15mm |
| Height | 9.7mm |
| Isolation Coil To Contact | 4000V rms |
| Length | 20mm |
| Maximum Operating Temperature | +65°C |
| Maximum Switching Current AC | 8 A |
| Maximum Switching Current DC | 8 A |
| Maximum Switching Power AC | 2000 VA |
| Maximum Switching Power DC | 240 W |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 125V dc |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| 線圈功率 | 200mW |
| 安裝類型 | PCB（印刷電路板）安裝 |
| 端子類型 | 通孔 |
| 工作溫度范圍 | -40 → +65°C |
| 最大切換電壓 交流 | 250V 交流 |
| 長度 | 20mm |
| 應用類型 | 電源 |
| 最大切換電壓 直流 | 125V 直流 |
| 高度 | 9.7mm |
| 深度 | 15mm |
| 線圈電阻 | 125 Ω |
| 壽命 | 100000（電氣）次循環，50000000（機械）次循環 |
| Board Level Components | Y |
| 特殊功能 | 密封 |
| 觸點材料 | 鍍金 |
| 最小工作溫度 | -40°C |
| 最大切換電流 直流 | 8 A |
| 尺寸 | 20 x 15 x 9.7mm |
| 最大切換電流 交流 | 8 A |
| 最大切換功率 交流 | 2 kVA |
| 最大工作溫度 | +65°C |
| 線圈對觸點絕緣 | 4kV rms |
| 觸點配置 | 雙刀單擲 |
| 線圈電壓 | 5 V 直流 |
| 最大切換功率 直流 | 240 W |
