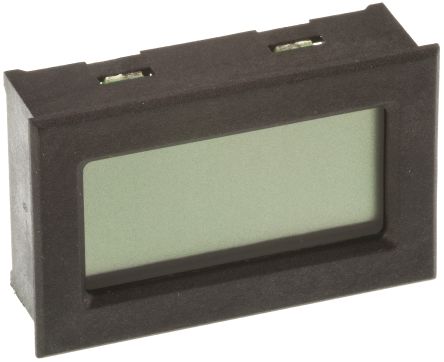

DMS-20LCD-0-DCM-C
2-WIRE METER 6.5-20VDC LCD
廠商型號:
DMS-20LCD-0-DCM-C
芯天下內部編號:
233-DMS-20LCD-0-DCM-C
生產廠商:
murata power solutions
描述:
2-WIRE METER 6.5-20VDC LCD
產品類別:
Power Supplies|DC to DC Power Supply
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| EU RoHS | Compliant |
| Unit Pack | 12 |
| MOQ | 12 |
| Selling Alternatives | DMS-20LCD-0-DCM |
| Subcategory | Misc Products |
| Lead Time | 84 Days |
| Display Type | LCD |
| Measuring Range | 6.5 ~ 18VDC |

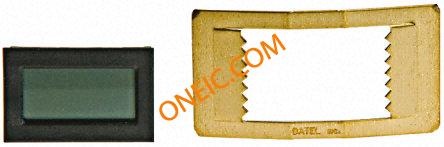

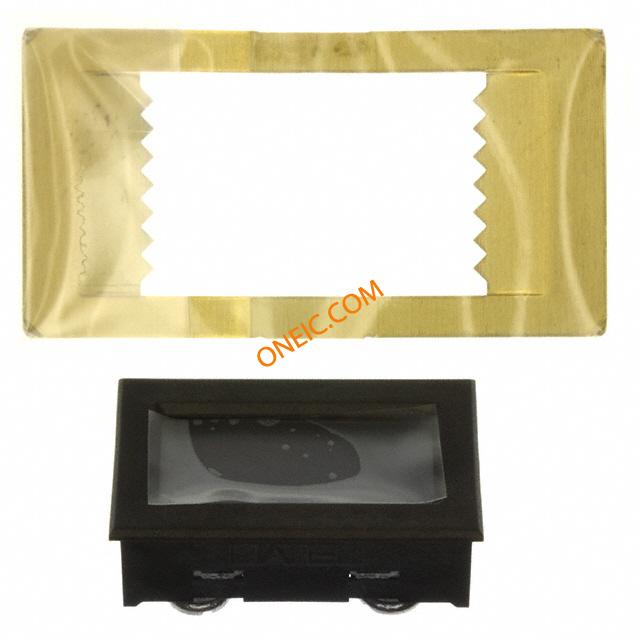

| Mounting Type | Bezel Mount or Panel Mount, Rear Mounting Clip |
| Display Characters - Height | 0.370" (9.40mm) |
| Display Style | Black Characters, Grey Background |
| Type | Voltage (Voltmeter) |
| Display Digits | 3.5 |
| Operating Temperature | 0°C ~ 60°C |
| Voltage - Supply | 12VDC |
| Panel Cutout Dimensions | Rectangular - 33.93mm x 21.29mm |
| Standard Package | 12 |
| Termination | Screw Terminals |
| Display Face Size | 1.83" W x 1.28" H (46.4mm x 32.5mm) |
| Features | Bezel Sold Separately |
| rohs | Lead free / RoHS Compliant |
| Analogue Effect | Digits Only |
| Current Type | DC |
| Cutout Height | 21.29mm |
| Cutout Width | 33.93mm |
| Depth | 15.8mm |
| Meter Accuracy | ±0.01 % |
| Number of Digits | 3.5 |
| 顯示表面尺寸 | 1.83" W x 1.28" H (46.4mm x 32.5mm) |
| 顯示數字 | 3.5 |
| 系列 | DMS-20LCD-0/1 |
| 端接 | Screw Terminals |
| 電壓 - 電源 | 12VDC |
| 顯示樣式 | Black Characters, Grey Background |
| 測量范圍 | 6.5 ~ 18VDC |
| 裝配類型 | Bezel Mount or Panel Mount, Rear Mounting Clip |
| 類型 | Voltage (Voltmeter) |
| 顯示類型 | LCD |
| 數字?jǐn)?shù)目 | 3.5 |
| 顯示器類型 | LCD |
| 模擬效果 | 僅數字 |
| 切面寬度 | 33.93mm |
| 電流類型 | 直流 |
| 儀表精確度 | ±0.01 % |
| 切面高度 | 21.29mm |
| 深度 | 15.8mm |
