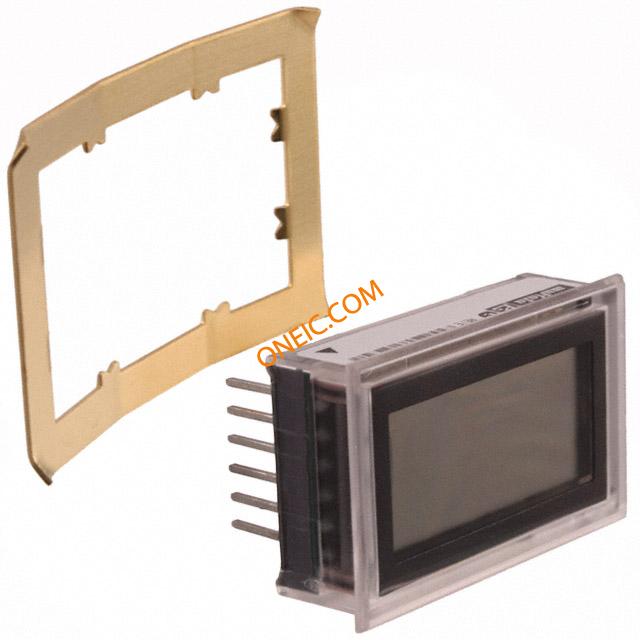

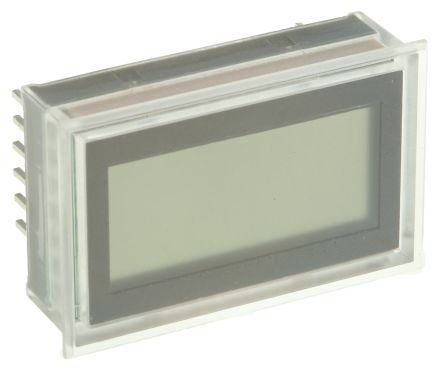

DMS-20LCD-1-5-C
DPM 2V LCD 5V-PWR
廠商型號:
DMS-20LCD-1-5-C
芯天下內部編號:
233-DMS-20LCD-1-5-C
生產廠商:
murata power solutions
描述:
DPM 2V LCD 5V-PWR
產品類別:
Power Supplies|Power Misc
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Unit Pack | 12 |
| MOQ | 12 |
| Selling Alternatives | DMS-20LCD-1-5 |
| Subcategory | Misc Products |
| Lead Time | 84 Days |
| Display Type | LCD |
| Measuring Range | ±2V |
| Mounting Type | Panel Mount, Rear Mounting Clip or PCB |
| Display Characters - Height | 0.370" (9.40mm) |
| Display Style | Black Characters, Grey Background |
| Type | Voltage (Voltmeter) |
| Display Digits | 3.5 |
| Calibration | Self Calibrating |
| Operating Temperature | 0°C ~ 60°C |
| Voltage - Supply | 5V |
| Panel Cutout Dimensions | Rectangular - 33.93mm x 21.29mm |
| Standard Package | 12 |
| Termination | PC Pins |
| Display Face Size | 1.83" W x 1.28" H (46.4mm x 32.5mm) |
| Features | Low Battery Indicator, Mounting Clip |
| rohs | Lead free / RoHS Compliant |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Operating Supply Current | 400 uA |
| Product Category | Digital Panel Meters |
| Dimensions | 11 mm L x 35 mm W x 22 mm H |
| Description/Function | Low power |
| Series | DMS-20LCD |
| Mounting Style | Panel, Board |
| Packaging | Case |
| Case Length | 11 mm |
| Equipment Type | Voltmeters |
| Case Height | 22 mm |
| Case Width | 35 mm |
| Input Voltage | +/- 2 V |
| RoHS | RoHS Compliant By Exemption |
| 最高溫度 | +60°C |
| 數字數目 | 3.5 |
| 顯示器類型 | LCD |
| 電流類型 | 直流 |
| 切面寬度 | 33.93mm |
| 最低溫度 | 0°C |
| 模擬效果 | 僅數字 |
| 切面高度 | 21.29mm |
| 深度 | 17.2mm |
