DMS-20LCD-2-9-C
DPM 20V LCD 9V-PWR
廠商型號:
DMS-20LCD-2-9-C
芯天下內部編號:
233-DMS-20LCD-2-9-C
生產廠商:
murata power solutions

描述:
DPM 20V LCD 9V-PWR
產品類別:
Power Supplies|Power Misc

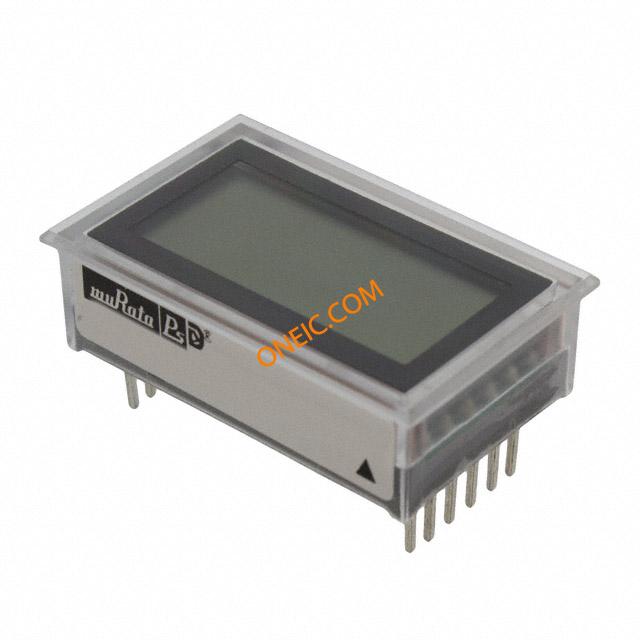

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
參數類型 | 參數值 |
---|---|
Unit Pack | 12 |
MOQ | 12 |
Selling Alternatives | DMS-20LCD-2-9 |
Subcategory | Misc Products |
Lead Time | 84 Days |
Display Type | LCD |
Measuring Range | ±20V |
Mounting Type | Panel Mount, Rear Mounting Clip or PCB |
Display Characters - Height | 0.370" (9.40mm) |
Display Style | Black Characters, Grey Background |
Type | Voltage (Voltmeter) |
Display Digits | 3.5 |
Calibration | Self Calibrating |
Operating Temperature | 0°C ~ 60°C |
Voltage - Supply | 9V |
Panel Cutout Dimensions | Rectangular - 33.93mm x 21.29mm |
Standard Package | 12 |
Termination | PC Pins |
Display Face Size | 1.83" W x 1.28" H (46.4mm x 32.5mm) |
Features | Low Battery Indicator, Mounting Clip |
rohs | Lead free / RoHS Compliant |
Operating Supply Voltage | 7.5 V to 14 V |
Operating Supply Current | 230 uA |
Product Category | Digital Panel Meters |
Dimensions | 11 mm L x 35 mm W x 22 mm H |
Description/Function | Low power |
Part # Aliases | DMS-20LCD-2-9-C |
Series | DMS-20LCD |
Mounting Style | Panel, Board |
Packaging | Case |
Case Length | 11 mm |
Equipment Type | Voltmeters |
Case Height | 22 mm |
Case Width | 35 mm |
Input Voltage | +/- 20 V |
RoHS | RoHS Compliant By Exemption |
No. of Digits / Alpha | :3-1/2 |
Meter Function | :DC Volts |
Meter Range | :-20V to +20V |
Digit Height | :9.4mm |
Panel Cutout Height | :21.29mm |
Panel Cutout Width | :33.93mm |
Supply Voltage Range | :7.5V DC to 14V DC |
Signal Input Type | :± 20V |
Weight (kg) | 0 |
Tariff No. | 85412900 |
