EEU-FC1V101

Cap Aluminum 100uF 35V 20% (8 X 11.5mm) Radial 3.5mm 555mA 2000 hr 105°C Bulk

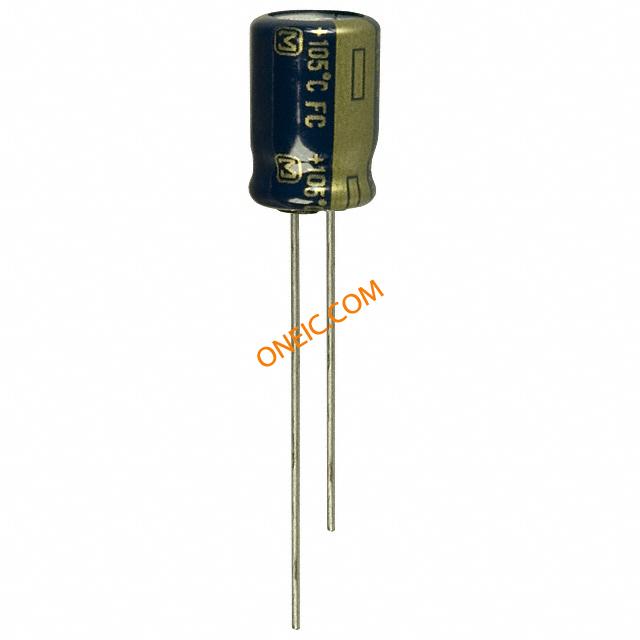

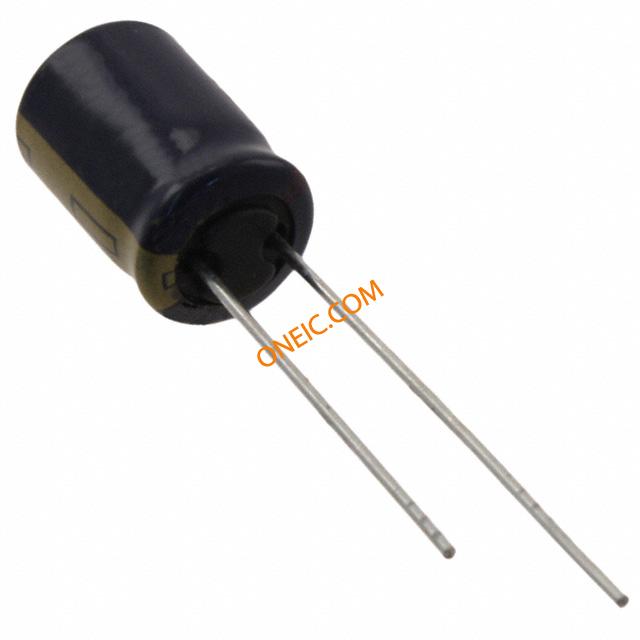

Thumbnail EEU-FC1V101 Thumbnail EEU-FC1V101 Thumbnail EEU-FC1V101 Thumbnail EEU-FC1V101 Thumbnail EEU-FC1V101 Thumbnail EEU-FC1V101
廠商型號: EEU-FC1V101
芯天下內部編號: 282-EEU-FC1V101
生產廠商:
panasonic panasonic
描述: Cap Aluminum 100uF 35V 20% (8 X 11.5mm) Radial 3.5mm 555mA 2000 hr 105°C Bulk
產品類別: Capacitor|Capacitor Aluminum
客戶編號:
規(guī)格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Mounting Through Hole
Capacitance Value 100 uF
Voltage 35 Vdc
Tolerance 20 %
Ripple Current 555 mA
Lifetime 2000 h
Product Diameter 8 mm
Product Height 11.5 mm
Lead Pitch For Radial 3.5 mm
Operating Temperature -55 to 105 °C
Type Radial
Standard Package Bulk
Product Category Aluminum Electrolytic Capacitors - Leaded
RoHS RoHS Compliant
Capacitance 100 uF
Voltage Rating 35 V
Operating Temperature Range - 55 C to + 105 C
Termination Style Radial
Case Diameter 8 mm
Case Length 11.5 mm
Lead Spacing 3.5 mm
Product High Temp Electrolytic Capacitors
Packaging Bulk
Series FC
Factory Pack Quantity 200
Industry Aliases EEUFC1V101
Subcategory Capacitor Aluminum
Lead Time 98 Days
rohs Lead free / RoHS Compliant
Dimensions 8 mm Dia. x 11 mm L
Load Life 2000 h
ESR 117 mOhms
Operating Temp Range -55C to 105C
Rad Hardened No
Failure Rate Not Required
Lead Diameter (nom) 0.6 mm
Construction Radial
Tolerance (+ or -) 20%
DCL 35@2Min uA
Lead Spacing (nom) 3.5 mm
Mounting Style Through Hole
Product Length (mm) Not Required mm
Product Depth (mm) Not Required mm
Product Height (mm) 11.5 mm
Size (mm) 8 X 11.5
Product Diameter (mm) 8 mm
Brand/Series FC Series
Case Size 8 mm Dia. x 11.5 mm L
Current, Ripple 0.555 A
Diameter, Lead 0.6 mm
Life 2000 Hours
Material, Element Aluminum Electrolytic
Temperature Range –55 to 105 °C
Termination Radial
Voltage, Rating 35 VDC
