EEU-FC1V122L
Cap Aluminum 1200uF 35V 20% (12.5 X 30mm) Radial 5mm 2310mA 5000 hr 105°C Bulk

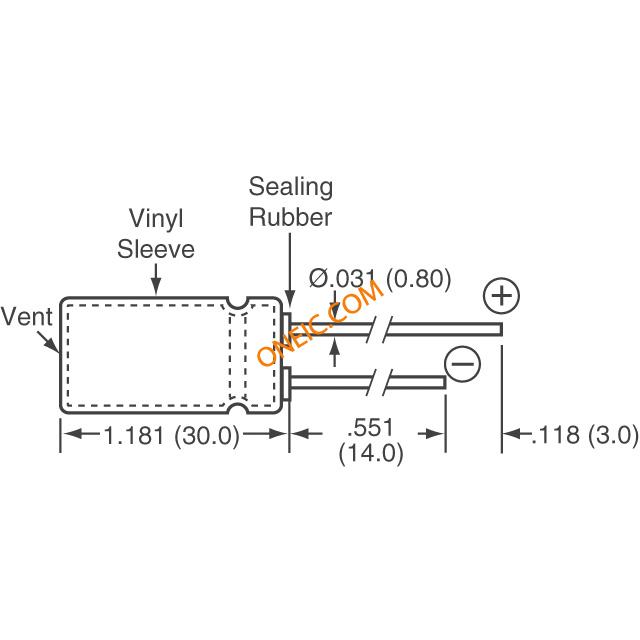

.jpg)
廠商型號:
EEU-FC1V122L
芯天下內部編號:
282-EEU-FC1V122L
生產廠商:
panasonic
描述:
Cap Aluminum 1200uF 35V 20% (12.5 X 30mm) Radial 5mm 2310mA 5000 hr 105°C Bulk
產品類別:
Capacitor|Capacitor Aluminum
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 1200 uF |
| Voltage | 35 Vdc |
| Tolerance | 20 % |
| Ripple Current | 2310 mA |
| Lifetime | 5000 h |
| Product Diameter | 12.5 mm |
| Product Height | 30 mm |
| Lead Pitch For Radial | 5 mm |
| Operating Temperature | -55 to 105 °C |
| Termination Style | Radial |
| Standard Package | Bulk |
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 1200 uF |
| Voltage Rating | 35 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Case Diameter | 12.5 mm |
| Case Length | 30 mm |
| Lead Spacing | 5 mm |
| Product | High Temp Electrolytic Capacitors |
| Packaging | Bulk |
| Series | FC |
| Factory Pack Quantity | 100 |
| Lead Diameter | 0.8 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 420@2Min |
| Lifetime | 5000 |
| Product Height | 30 |
| Lead Pitch For Radial | 5 |
| Ripple Current | 2310 |
| Type | Electrolytic |
| Product Diameter | 12.5 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 12.5 mm Dia. x 30 mm L |
| Load Life | 5000 h |
| ESR | 25 mOhms |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.8 mm |
| Construction | Radial |
| Tolerance (+ or -) | 20% |
| DCL | 420@2Min uA |
| Lead Spacing (nom) | 5 mm |
| Mounting Style | Through Hole |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 30 mm |
| Size (mm) | 12.5 X 30 |
| Product Diameter (mm) | 12.5 mm |
| Brand/Series | FC Series |
| Case Size | 12.5 mm Dia. x 30 mm L |
| Current, Ripple | 2.31 A |
| Diameter, Lead | 0.8 mm |
| Life | 5000 Hours |
| Material, Element | Aluminum Electrolytic |
| Temperature Range | –55 to 105 °C |
| Termination | Radial |
| Voltage, Rating | 35 VDC |
| 電容 | 1200μF |
| 大小/尺寸 | 0.492" Dia (12.50mm) |
| 容差 | ±20% |
| 操作溫度 | -55°C ~ 105°C |
| 紋波電流 | 2.31A |
| 裝配類型 | Through Hole |
| 額定電壓 | 35V |
| 應用 | General Purpose |
| 不同溫度時的使用壽命 | 5000 Hrs @ 105°C |
| 系列 | FC |
| 高度 - 安裝（最大值） | 1.181" (30.00mm) |
