ENA1J-B28-L00064L
,HAZMAT
廠商型號:
ENA1J-B28-L00064L
芯天下內部編號:
18-ENA1J-B28-L00064L
生產廠商:
bourns
描述:
,HAZMAT
產品類別:
Optoelectronics|Optoelectronics Misc

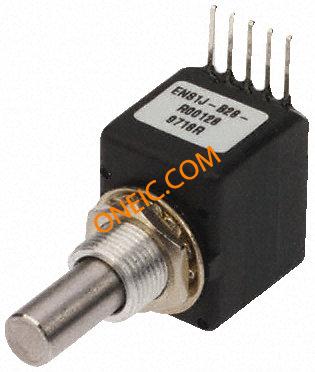

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Bracket Mount |
| Shaft Style | Plain |
| Programmable | No |
| Shaft Diameter | 6.35 |
| Maximum Operating Speed | 300r/min |
| EU RoHS | Compliant |
| Minimum Operating Supply Voltage | 4.75V |
| Number of Channels | 2 |
| Minimum Operating Temperature | -40 |
| Mechanical Life | 10000000 |
| Terminal Type | PC Pins |
| Product Length | 21.21 |
| Maximum Operating Temperature | 75 |
| IP Rating | IP40 |
| Body Orientation | Straight |
| Built-In Switch | No |
| Motion | Rotary |
| Shock Rating | 50G |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Torque | 1.5oz.in |
| Pulses per Revolution | 256 |
| Maximum Operating Supply Voltage | 5.25V |
| Product Depth | 15.88 |
| Encoder Reading | Incremental |
| Modular Kit Encoder | No |
| Product Height | 50.26 |
| Typical Operating Supply Voltage | 5VDC |
| Detents | No |
| Index output | Not Indexed |
| Rotational Life (Cycles Min) | 10M |
| Mounting Type | Panel, PCB Through Hole |
| Termination Style | PC Pin |
| Encoder Type | Optical |
| Output Type | Quadrature (Incremental) |
| Detent | No |
| Voltage - Supply | 5VDC |
| Actuator Type | 1/4" Dia Round End |
| Standard Package | 1 |
| Built in Switch | No |
| Orientation | Vertical |
| rohs | Lead free / RoHS Compliant |
| Pulses Per Revolution | 256 |
| Shaft Diameter | 6.35 mm |
| Factory Pack Quantity | 1 |
| Product | Optical Encoders |
| Product Category | Encoders |
| Operating Temperature Range | - 40 C to + 75 C |
| Resolution | 64 PPR |
| Series | EN |
| Shaft Type | Round / Plain |
| Packaging | Bulk |
| Supply Voltage | 5 V |
| With Switch | Yes |
| Output | Quadrature |
| Technology | Rotary |
| RoHS | RoHS Compliant |
| No. of Channels | :2 |
| Rotational Speed Max | :300rpm |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5V |
| SVHC | :No SVHC (20-Jun-2013) |
| Connector Type | :Pins |
| Encoder Resolution | :64 |
| External Depth | :15.88mm |
| External Length / Height | :18.5mm |
| External Width | :21.21mm |
| No. of Pulses Per Revolution | :64CPR |
| Rotational Life Cycles | :10000000 |
| Rotational Speed | :3000rpm |
| Shaft Length - Metric | :22.2mm |
| Supply Current | :26mA |
| Supply Voltage V DC | :5VDC |
| Thread Length | :9.525mm |
| Thread Size | :3/8 - 32 UNEF |
| Type | :Rotary Optical Encoder |
| Weight (kg) | 0.01 |
| Tariff No. | 85411000 |
| Gross weight | 0.02 kg |
| Multiplicity | 1 |
| Collective package [pcs] | 2 |
| Sensor type | encoder |
| spg | 2 |
