ENA1J-B28-L00100L
,HAZMAT
廠商型號:
ENA1J-B28-L00100L
芯天下內部編號:
18-ENA1J-B28-L00100L
生產廠商:
bourns
描述:
,HAZMAT
產品類別:
Optoelectronics|Optoelectronics Misc

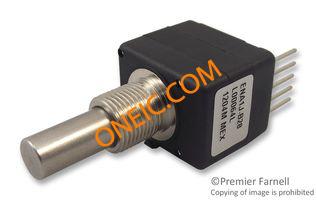

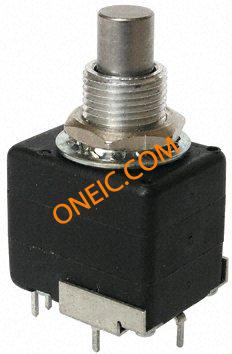

所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Rotational Life (Cycles Min) | 10M |
| Pulses per Revolution | 100 |
| Mounting Type | Panel, PCB Through Hole |
| Termination Style | PC Pin |
| Encoder Type | Optical |
| Output Type | Quadrature (Incremental) |
| Detent | No |
| Voltage - Supply | 5VDC |
| Actuator Type | 1/4" Dia Round End |
| Standard Package | 1 |
| Built in Switch | No |
| Orientation | Vertical |
| Encoder Technology | Optical |
| IP Rating | IP40 |
| Maximum Operating Temperature | +75°C |
| Maximum Revolutions | 3000rpm |
| Minimum Operating Temperature | -40°C |
| Output Signal Type | Quadrature |
| Overall Depth | 15.88mm |
| Overall Height | 47.05mm |
| Overall Width | 21.21mm |
| Pulses Per Revolution | 100ppr |
| Resolution | 2 bit |
| Shaft Type | End |
| Supply Voltage | 5 V dc |
| rohs | Compliant |
| Factory Pack Quantity | 1 |
| Product | Optical Encoders |
| Product Category | Encoders |
| Operating Temperature Range | - 40 C to + 75 C |
| Series | EN |
| Packaging | Bulk |
| Shaft Diameter | 1/4 in |
| Number of Channels | 2 Channel |
| With Switch | Yes |
| Output | Quadrature |
| Technology | Rotary |
| RoHS | RoHS Compliant |
| Encoder Resolution | :100 |
| Rotational Speed Max | :300rpm |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| SVHC | :No SVHC (16-Dec-2013) |
| MSL | :- |
| Weight (kg) | 0.0129 |
| Tariff No. | 85334010 |
| No. of Channels | :2 |
| Encoder Output | :Square Wave Digital Pulse |
| Type | Optical |
