ETQP4LR36WFC
Ind Power Choke Coil 360nH 20% 100KHz 24A T/R
廠商型號:
ETQP4LR36WFC
芯天下內部編號:
282-ETQP4LR36WFC
生產廠商:
panasonic
描述:
Ind Power Choke Coil 360nH 20% 100KHz 24A T/R
產品類別:
Inductor|Inductor Surface Mount

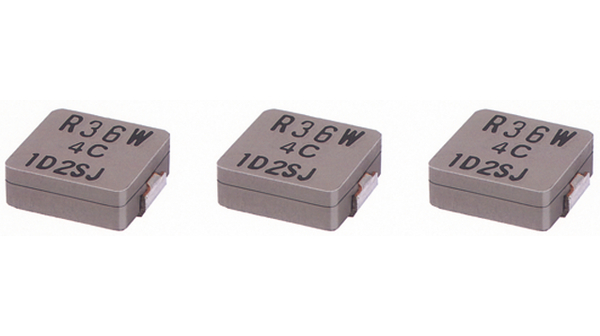

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 11.5 X 10.3 X 4 |
| Type | Power Choke Coil |
| Inductance | 360 nH |
| Maximum DC Current | 24 A |
| Tolerance | 20 % |
| Maximum DC Resistance | 1.1(Typ) mOhm |
| Product Depth | 10.3 mm |
| Product Height | 4 mm |
| Standard Package | Tape & Reel |
| Depth | 10mm |

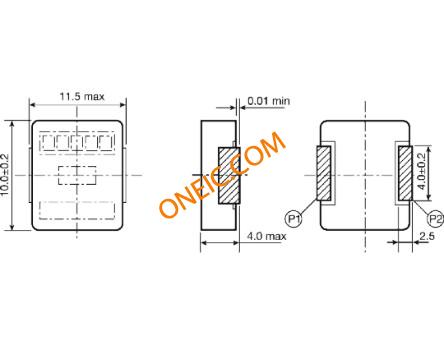

| Dimensions | 11.5 x 10 x 4mm |
| Height | 4mm |
| Length | 11.5mm |
| rohs | Compliant |
| Product Range | :PANASONIC - PCC-M104L Series |
| Inductance Tolerance | :± 20% |
| Inductor Construction | :Wirewound |
| DC Resistance Max | :1100μohm |
| RMS Current (Irms) | :24A |
| Case Dimensions | :11.5mm x 10mm x 4mm |
| External Depth | :4mm |
| External Length / Height | :11.5mm |
| External Width | :10mm |
| Inductor Type | :High Current |
| No. of Pins | :2 |
| Termination Type | :SMD |
| Weight (kg) | 0.003 |
| Tariff No. | 85045020 |
