ETQP6F1R8BFA
Inductor SMD ETQP6F 1,71uH 14A
廠商型號:
ETQP6F1R8BFA
芯天下內部編號:
282-ETQP6F1R8BFA
生產廠商:
Panasonic
描述:
Inductor SMD ETQP6F 1,71uH 14A
產品類別:
Passive Components|Inductors|Wire-Wound Surface Mount Inductors
客戶編號:
規格書:
查看PDF

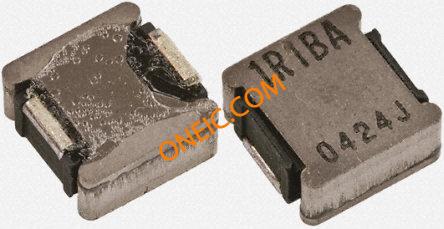

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Depth | 12.5mm |
| Dimensions | 12.5 x 12.5 x 6mm |
| Height | 6mm |
| Inductance | 1.71 μH |
| Length | 12.5mm |
| Maximum DC Current | 14A |
| Maximum DC Resistance | 3.3mΩ |
| Tolerance | ±20% |
| Product Range | :PANASONIC - PCC-D126F Series |
| Inductance Tolerance | :± 20% |
| Inductor Construction | :Wirewound |
| DC Resistance Max | :3300μohm |
| RMS Current (Irms) | :14A |
| Case Dimensions | :12.5mm x 12.5mm x 6mm |
| External Depth | :6mm |
| External Length / Height | :12.5mm |
| External Width | :12.5mm |
| Inductor Type | :Power Inductor |
| No. of Pins | :2 |
| Termination Type | :SMD |
| Weight (kg) | 0.0058 |
| Tariff No. | 85045020 |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| ETQP6F1R0SFA | Panasonic | Power Choke Molded Wirewound 1uH 30% 100KHz 14.2A 2.24mOhm DCR T/R | 查看詳情 |
| ETQP6F1R1BFA | Panasonic | Inductor SMD ETQP6F 1,06uH 16A | 查看詳情 |
| ETQP6F1R2HFA | panasonic | Ind Power Choke Molded 1.2uH 30% 100KHz 14.2A T/R | 查看詳情 |
| ETQP6F1R3LFA | panasonic | Ind Power Choke Molded 1.3uH 30% 100KHz 12.5A T/R | 查看詳情 |
| ETQP6F102HFA | Panasonic | Inductor SMD ETQP6F 10,2uH 6,5A | 查看詳情 |
| ETQP6F0R6BFA | Panasonic | Inductor SMD ETQP6F 0,58uH 19A | 查看詳情 |
| ETQP6F0R8LFA | panasonic | Ind Power Choke Molded Wirewound 800nH 30% 100KHz 14.2A T/R | 查看詳情 |
| ETQP6F2R0HFA | panasonic | Ind Power Choke Molded 2uH 30% 100KHz 12.5A T/R | 查看詳情 |
| ETQP6F2R0LFA | panasonic | Ind Power Choke Molded 2uH 30% 100KHz 10.8A T/R | 查看詳情 |
| ETQP6F2R5BFA | Panasonic | Inductor SMD ETQP6F 2,45uH 12A | 查看詳情 |
| ETQP6F2R5SFA | PANASONIC | 查看詳情 | |
| ETQP6F2R9LFA | Panasonic | Inductor SMD ETQP6F 2,9uH 9,3A | 查看詳情 |
| ETQP6F3R2HFA | panasonic | Ind Power Choke Molded 3.2uH 25% 100KHz 10.8A T/R | 查看詳情 |
| ETQP6F3R4BFA | Panasonic | Inductor SMD ETQP6F 3,32uH 10A | 查看詳情 |
| ETQP6F3R5SFA | Panasonic | Power Choke Molded Wirewound 3.5uH 30% 100KHz 9.3A 6.48mOhm DCR T/R | 查看詳情 |
| ETQP6F4R1LFA | Panasonic | Inductor SMD ETQP6F 4,1uH 7,9A | 查看詳情 |
| ETQP6F4R6HFA | panasonic | Ind Power Choke Molded 4.6uH 25% 100KHz 9.3A T/R | 查看詳情 |
| ETQP6F6R4HFA | Panasonic | Inductor SMD ETQP6F 6,4uH 7,9A | 查看詳情 |
| ETQP6F8R2HFA | panasonic | Ind Power Choke Molded 8.2uH 25% 100KHz 7.2A T/R | 查看詳情 |
| ETQP6M2R5YLC | Panasonic | Inductor shielded 10.9x10x6 2.5uH 27A | 查看詳情 |
