ETRX2-PA
MODULE ZIGBEE W/PWR AMP
廠商型號:
ETRX2-PA
芯天下內部編號:
787-ETRX2-PA
生產廠商:
Telegesis Ltd
描述:
MODULE ZIGBEE W/PWR AMP
產品類別:
Semiconductors - Modules|Communications & Networking Modules|Zigbee

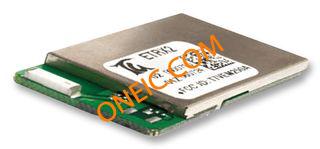

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Current - Transmitting | 106mA |
| Power - Output | 18dBm |
| Data Rate (Max) | 250kbps |
| Current - Receiving | 37mA |
| Antenna Connector | On-Board, Chip |
| Data Interface | PCB, Surface Mount |
| Sensitivity | -96dBm |
| Standard Package | 100 |
| Packaging | Tape & Reel (TR) |
| Applications | ISM |
| Operating Temperature | -40°C ~ 85°C |
| Memory Size | 128kB Flash, 5kB SRAM |
| Voltage - Supply | 2.7 V ~ 3.5 V |
| Package / Case | Module |
| Modulation or Protocol | 802.15.4 Zigbee |
| Frequency | 2.4GHz |
| Other Names | 920-1001-2 |
| rohs | Lead free / RoHS Compliant |
| Module Applications | :AMR, Building Automation, Wireless Sensor Network, M2M Industrial Controls |
| MCU Supported Families | :EM250 |
| Processor Type | :EM250 |
| Wireless Protocol | :IEEE 802.15.4 |
| Data Rate | :250Kbps |
| Module Interface | :I2C, SPI, UART |
| Supply Voltage Min | :2.8V |
| Supply Voltage Max | :3.6V |
| Development Tool Type | :Zigbee Module |
| IC Adapter Type | :Power Amplified Mesh |
| Supply Voltage Range | :2.8V to 3.6V |
| Supported Devices | :ETRX2 |
| Temperature Max | :85°C |
| Temperature Min | :-40°C |
| Weight (kg) | 0.005 |
| Tariff No. | 85235290 |
| Communications modules features | ceramic antenna |
| Transfer rate | 20kbps |
| Dimensions | 37 x 75 x 20.5mm |
| Communications module type | ZigBee |
| Communictions protocol | ZigBee |
| Multiplicity | 1 |
| Ciphering | 128 bit key |
| Gross weight | 5.67 g |
| Band | 2,4GHz |
| Operating temperature | -40...85°C |
| Supply voltage | 2.8...3.6V DC |
| Mounting | SMD |
| Interface | UART |
| Collective package [pcs] | 10 |
| Transmitter output power | 18dBm |
| spg | 10 |
| Connector type | I-PEX (u.FL) |
