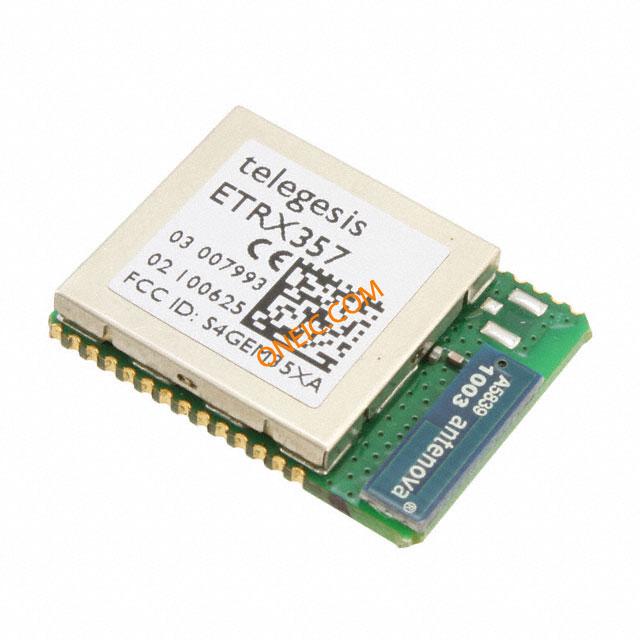

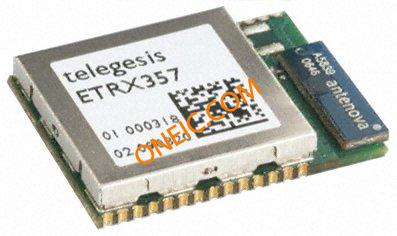

ETRX357
MODULE ZIGBEE EM357 W/CHIP ANT
廠商型號:
ETRX357
芯天下內部編號:
787-ETRX357
生產廠商:
Telegesis Ltd
描述:
MODULE ZIGBEE EM357 W/CHIP ANT
產品類別:
Computing & Peripherals|Wireless Components & Modules|ZigBee Modules
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Current - Transmitting | 31mA |
| Power - Output | 3dBm |
| Data Rate (Max) | 250kbps |
| Current - Receiving | 27mA |
| Antenna Connector | On-Board, Chip |
| Data Interface | PCB, Surface Mount |
| Sensitivity | -100dBm |
| Standard Package | 600 |
| Packaging | Tape & Reel (TR) |
| Applications | ISM |
| Operating Temperature | -40°C ~ 85°C |
| Memory Size | 192kB Flash, 12kB RAM |
| Voltage - Supply | 2.1 V ~ 3.6 V |
| Package / Case | Module |
| Modulation or Protocol | 802.15.4 Zigbee |
| Frequency | 2.4GHz |
| Other Names | 920-1006-2 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 25 x 19 x 3mm |
| Height | 3mm |
| Length | 25mm |
| Maximum Operating Temperature | +85°C |
| Maximum Output Power | 8dBm |
| Minimum Operating Temperature | -40°C |
| Receiver Sensitivity | -95dBm |
| Supply Voltage | 2.1 → 3.6V dc |
| Supported Bus Interfaces | UART |
| Supported Network Interfaces | Serial, WPAN |
| Width | 19mm |
| MCU Supported Families | :- |
| Weight (kg) | 0.003 |
| Tariff No. | 85171800 |
