FBA09A12H1A
DC Fan Hydro Wave Bearing 12V 0.255A 2.7W 2950RPM 56.8CFM 35dB Flange Mount
廠商型號:
FBA09A12H1A
芯天下內部編號:
242-FBA09A12H1A
生產廠商:
NMB Technologies Corporation
描述:
DC Fan Hydro Wave Bearing 12V 0.255A 2.7W 2950RPM 56.8CFM 35dB Flange Mount
產品類別:
Fans, Thermal Management|DC Fans|FBA
客戶編號:
規格書:
查看PDF

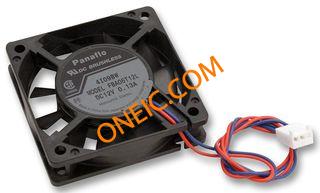

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 92 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Maximum Pressure | 0.16inH2O |
| Product Depth | 92 |
| Bearings | Hydro Wave |
| Nominal Speed | 2950 |
| Noise Level | 35 |
| Voltage Rating | 12 |
| Operating Input Voltage Range | 7 to 13.8 |
| Power Rating | 2.7 |
| Line Current | 0.255 |
| Maximum Airflow | 56.8 |
| Mounting | Flange Mount |
| Termination | Lead Wire |
| Minimum Operating Temperature | -10 |
| Product Height | 25.4 |
| Fan Rotation | Clockwise |
| Subcategory | Blowers and Fans |
| Lead Time | 365 Days |
| Static Pressure | 0.169 in H2O (42.1 Pa) |
| Noise | 35 dB |
| Current Rating | 0.255A |
| Voltage - Rated | 12VDC |
| Standard Package | 100 |
| Bearing Type | Hydro-wave (HWB) |
| Size / Dimension | Square - 92mm L x 92mm H x 25.5mm W |
| Weight | 0.243 lb (110.22g) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Air Flow | 56.8 CFM (1.61m3/min) |
| Fan Type | Tubeaxial |
| Life Expectancy | 50000 hrs @ 40°C |
| Voltage Range | 7 ~ 13.8VDC |
| Power (Watts) | 2.70W |
| RPM | 2950 RPM |
| rohs | Lead free / RoHS Compliant |
