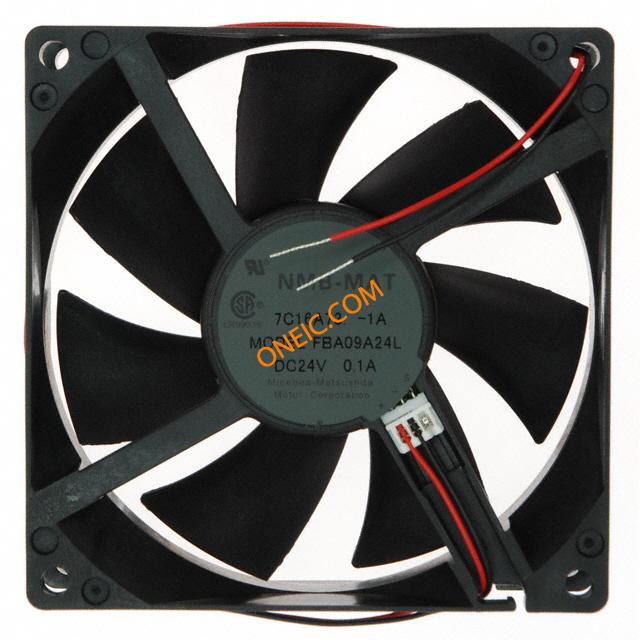

FBA09A24L1A
FAN 24VDC 1.92W 92MM FBA HYDRO
廠商型號:
FBA09A24L1A
芯天下內部編號:
242-FBA09A24L1A
生產廠商:
NMB Technologies Corporation
描述:
FAN 24VDC 1.92W 92MM FBA HYDRO
產品類別:
Fans, Thermal Management|DC Fans|FBA
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Static Pressure | 0.102 in H2O (25.5 Pa) |
| Noise | 27 dB |
| Current Rating | 0.080A |
| Voltage - Rated | 24VDC |
| Standard Package | 100 |
| Bearing Type | Hydro-wave (HWB) |
| Size / Dimension | Square - 92mm L x 92mm H x 25.5mm W |
| Weight | 0.243 lb (110.22g) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Air Flow | 42.7 CFM (1.21m3/min) |
| Fan Type | Tubeaxial |
| Life Expectancy | 50000 hrs @ 40°C |
| Voltage Range | 14 ~ 27.6VDC |
| Termination | 2 Wire Leads |
| Power (Watts) | 1.92W |
| RPM | 2200 RPM |
