FCE17-E09PB-440
D-Sub Standard Connectors .405 R/A 9P 4-40 THR PIN 820 PF
廠商型號:
FCE17-E09PB-440
芯天下內部編號:
36-FCE17-E09PB-440
生產廠商:
Amphenol Commercial Products
描述:
D-Sub Standard Connectors .405 R/A 9P 4-40 THR PIN 820 PF
產品類別:
Connectors|D-Sub Connectors|D-Sub Standard Connectors

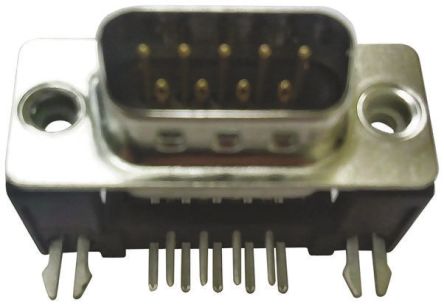

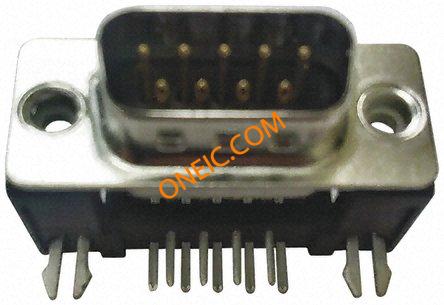

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | D-Sub Standard Connectors |
| RoHS | RoHS Compliant |
| Number of Positions / Contacts | 9 |
| Number of Rows | 2 |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 5 A |
| Operating Temperature Range | - 40 C to + 85 C |
| Pitch | 2.74 mm |
| Shell Material | Steel |
| Shell Plating | Tin |
| Shell Size | E |
| Matchcode | FCE17E09PB440 |
| No.of contacts | 09 |
| Unit Pack | 60 |
| Standard Leadtime | 10 weeks |
| MOQ | 60 |
| Housing materia | SOLDER |
| Contact style | MALE |
| Approvals | -40 TO 85 |
| Package | FCE |
| Series | RIGHTANGLE |
| Automotive | NO |
| Leadfree Defin. | RoHS-conform |
| Body Orientation | Right Angle |
| Depth | 20.6mm |
| Dimensions | 30.81 x 12.55 x 20.6mm |
| Housing Material | Thermoplastic |
| Length | 30.81mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Through Hole |
| Number of Contacts | 9 |
| Width | 12.55mm |
| rohs | Compliant |
| No. of Contacts | :9 |
| D Sub Shell Size | :DE |
| Capacitance | :820pF |
| Contact Termination | :Solder |
| Weight (kg) | 0.008 |
| Tariff No. | 85366990 |
