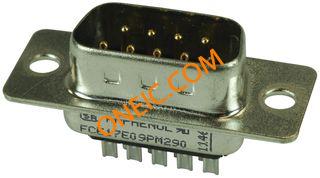

FCE17-E09PM-290
D-Sub Standard Connectors D-SUB S/CUP 5600PF
廠商型號:
FCE17-E09PM-290
芯天下內部編號:
36-FCE17-E09PM-290
生產廠商:
Amphenol Commercial Products
描述:
D-Sub Standard Connectors D-SUB S/CUP 5600PF
產品類別:
Connectors|D-Sub Connectors|D-Sub Standard Connectors

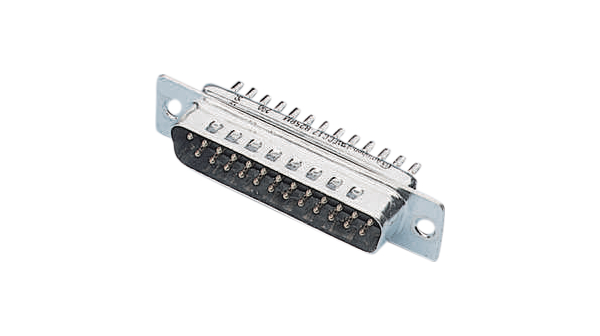

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | D-Sub Standard Connectors |
| RoHS | RoHS Compliant |
| Number of Positions / Contacts | 9 |
| Number of Rows | 2 |
| Gender | Male |
| Mounting Style | Through Hole |
| Mounting Angle | Vertical |
| Termination Style | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 5 A |
| Insulation | Insulated |
| Insulation Material | Thermoplastic |
| Operating Temperature Range | - 40 C to + 85 C |
| Shell Material | Steel |
| Shell Plating | Tin |
| Factory Pack Quantity | 60 |
| Part # Aliases | 99K7223 |
| Body Orientation | Straight |
| Depth | 16.48mm |
| Dimensions | 30.81 x 12.55 x 16.48mm |
| Housing Material | Steel |
| Length | 30.81mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Panel Mount |
| Number of Contacts | 9 |
| Width | 12.55mm |
| rohs | Compliant |
| Series | :- |
| No. of Contacts | :9 |
| D Sub Shell Size | :DE |
| Connector Body Material | :Metal |
| Capacitance | :5600pF |
| Contact Termination | :Solder |
| Weight (kg) | 0.006 |
| Tariff No. | 85366990 |
