FP0705R1-R10-R
Ind Power Wirewound 105nH 10% 100KHz Ferrite 43A T/R
-Series.jpg)
廠商型號:
FP0705R1-R10-R
芯天下內部編號:
671-FP0705R1-R10-R
生產廠商:
cooper bussmann
描述:
Ind Power Wirewound 105nH 10% 100KHz Ferrite 43A T/R
產品類別:
Inductor|Inductor Surface Mount

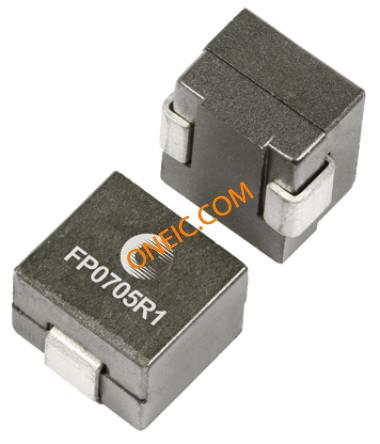

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 7 X 7 X 4.95 |
| Type | Power |
| Inductance | 105 nH |
| Maximum DC Current | 43 A |
| Tolerance | 10 % |
| Maximum DC Resistance | 250(Typ) uOhm |
| Core Material | Ferrite |
| Product Height | 4.95 mm |
| Standard Package | Tape & Reel |
| Product Category | Fixed Inductors |
| RoHS | RoHS Compliant By Exemption |
| Operating Temperature Range | - 40 C to + 105 C |
| Dimensions | 7 mm W x 7 mm L x 4.95 mm H |
| Shielding | Unshielded |
| Termination Style | SMD/SMT |
| Case Height | 4.95 mm |
| Case Length | 7 mm |
| Case Width | 7 mm |
| Packaging | Reel |
| Product | Power Inductors |
| Series | FP0705 |
| Test Frequency | 100 kHz |
| Maximum DC Resistance | 250u(Typ) |
| Product Length | 7 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Maximum DC Current | 43 |
| Product Depth | 7 |
| Product Height | 4.95 |
| Test Frequency | 100K |
| Minimum Operating Temperature | -40 |
| Technology | Wirewound |
| Current Rating | 43A |
| DC Resistance (DCR) | 0.25 mOhm |
| Height - Seated (Max) | 0.195" (4.95mm) |
| Material - Core | Ferrite |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Non Standard |
| Frequency - Test | 100kHz |
| Current - Saturation | 44A |
| rohs | Lead free / RoHS Compliant |
| Other Names | 513-1597-1 |
| Depth | 7mm |
| Height | 4.95mm |
| Length | 7mm |
| Maximum Operating Temperature | +125°C |
| Maximum Self Resonant Frequency | 2MHz |
| Minimum Operating Temperature | -40°C |
| Moulded | Yes |
| Unit Weight | 0.016000 oz |
| 電感值 | 75 nH |
| 系列 | FP0705 |
| 容差 | ±10% |
| 最高工作溫度 | +125°C |
| 深度 | 7mm |
| 高度 | 4.95mm |
| 最低工作溫度 | -40°C |
| 長度 | 7mm |
| 尺寸 | 7 x 7 x 4.95mm |
| 封裝/外殼 | 0705 |
| 模制 | 是 |
| Board Level Components | Y |
| 最大自諧振頻率 | 2MHz |
| 最大直流電阻值 | 0.25mΩ |
| 最大直流電流 | 44A |
| 芯材 | 鐵氧體 |
