FP0705R3-R15-R
Ind Power Wirewound 150nH 10% 100KHz Ferrite 32A T/R
廠商型號:
FP0705R3-R15-R
芯天下內部編號:
671-FP0705R3-R15-R
生產廠商:
cooper bussmann
描述:
Ind Power Wirewound 150nH 10% 100KHz Ferrite 32A T/R
產品類別:
Inductor|Inductor Surface Mount

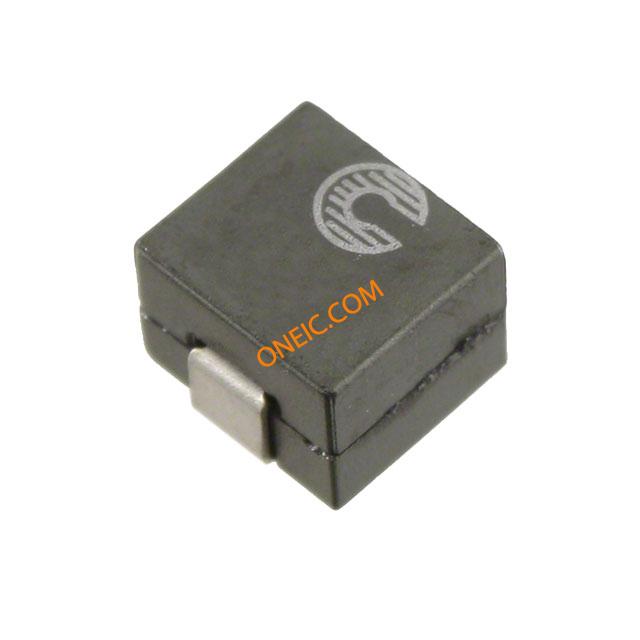

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 7 X 7 X 4.95 |
| Type | Power |
| Inductance | 150 nH |
| Maximum DC Current | 32 A |
| Tolerance | 10 % |
| Maximum DC Resistance | 460(Typ) uOhm |
| Core Material | Ferrite |
| Product Height | 4.95 mm |
| Standard Package | Tape & Reel |
| Product Category | Fixed Inductors |
| RoHS | RoHS Compliant |
| Operating Temperature Range | - 40 C to + 125 C |

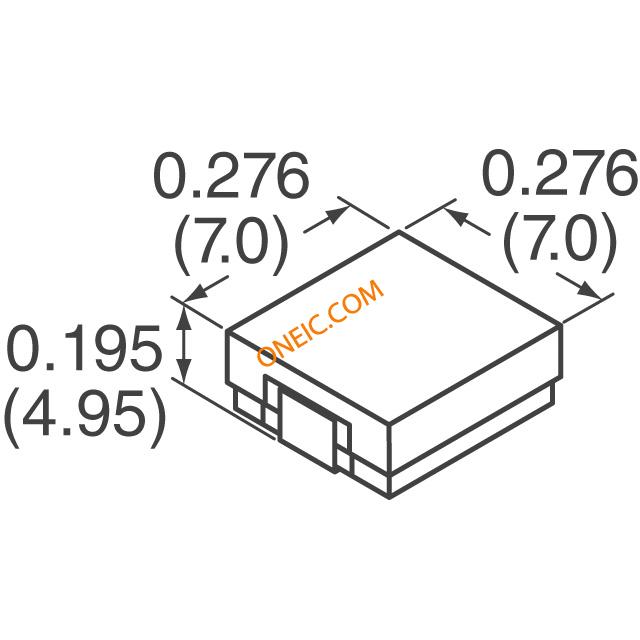

| Dimensions | 7 mm W x 7 mm L x 4.95 mm H |
| Shielding | Unshielded |
| Termination Style | SMD/SMT |
| Case Height | 4.95 mm |
| Case Length | 7 mm |
| Case Width | 7 mm |
| Packaging | Reel |
| Product | Power Inductors |
| Series | FP0705 |
| Test Frequency | 100 kHz |
| メーカ | Cooper Bussmann |
| 製品カテゴリ | 固定インダクタ |
| インダクタンス | 150 nH |
| 公差 | 10 % |
| 最大 DC 電流 | 32 A |
| 最大 DC 抵抗 | 460 uOhms |
| 動作溫度範囲 | - 40 C to + 125 C |
| 寸法 | 7 mm W x 7 mm L x 4.95 mm H |
| 遮蔽 | Unshielded |
| 末端様式 | SMD/SMT |
| ケースの高さ | 4.95 mm |
| ケースの長さ | 7 mm |
| ケースの幅 | 7 mm |
| コア材質 | Ferrite |
| パッケージ化 | Reel |
| 製品 | Power Inductors |
| シリーズ | FP0705 |
| テスト周波數 | 100 kHz |
| Current Rating | 32A |
| DC Resistance (DCR) | 0.46 mOhm |
| Height - Seated (Max) | 0.195" (4.95mm) |
| Material - Core | Ferrite |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Non Standard |
| Frequency - Test | 100kHz |
| Current - Saturation | 30A |
| Other Names | 513-1611-2 |
| rohs | Lead free / RoHS Compliant |
| Depth | 7mm |
| Height | 4.95mm |
| Length | 7mm |
| Maximum Operating Temperature | +125°C |
| Maximum Self Resonant Frequency | 2MHz |
| Minimum Operating Temperature | -40°C |
| Moulded | Yes |
| Unit Weight | 0.016000 oz |
| 電流 - 飽和值 | 30A |
| 容差 | ±10% |
| 操作溫度 | -40°C ~ 125°C |
| 直流電阻 (DCR) | 0.46 mOhm |
| 頻率 - 測試 | 100kHz |
| 電感 | 150nH |
| 屏蔽 | Unshielded |
| 額定電流 | 32A |
| 類型 | Wirewound |
| 材料 - 磁芯 | Ferrite |
