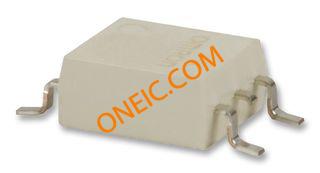

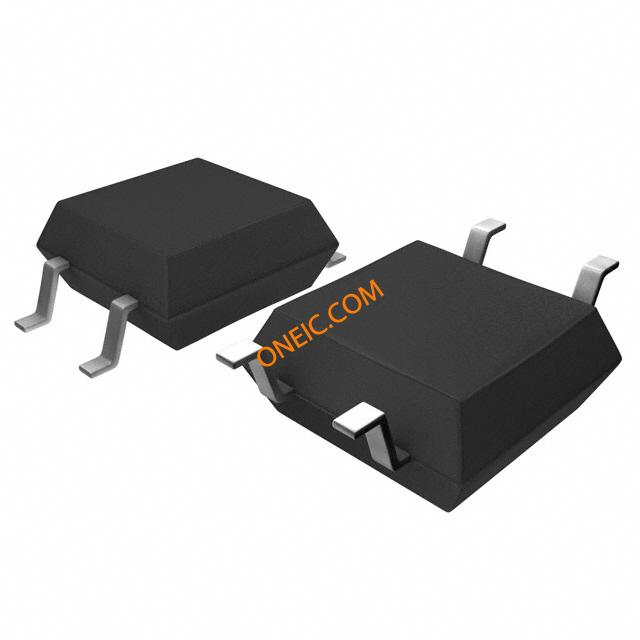

G3VM-21GR1

Relay SSR 50mA 1.3V DC-IN 0.3A 20V AC-OUT 4-Pin SOP

Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1 Thumbnail G3VM-21GR1
廠商型號: G3VM-21GR1
芯天下內部編號: 232-G3VM-21GR1
生產廠商:
omron electronics omron electronics
描述: Relay SSR 50mA 1.3V DC-IN 0.3A 20V AC-OUT 4-Pin SOP
產品類別: Switches and Relays|Relays|Solid State Relay
客戶編號:
規格書: 查看PDF
瀏覽次數: 7

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package 4SOP
Circuit Arrangement 1 Form A
Input Type DC
Output Device MOSFET
Output Type AC
Maximum Output Current 0.3 A
Maximum Output Voltage 20 V
Maximum Input Current 50 mA
Maximum Input Voltage 1.3 V
I/O Isolation Voltage 1500(RMS) V
Mounting Surface Mount
Standard Package Bulk
Product Category Solid State Relays - PCB Mount
RoHS RoHS Compliant
Control Voltage Range 1 V to 1.3 V
Load Voltage Rating 20 V
Load Current Rating 300 mA
Contact Form 1 Form A (SPST-NO)
Package / Case SOP-4
Mounting Style SMD/SMT
Product Type PCB Mount
Series G3VM
Factory Pack Quantity 100
Termination Style Gull Wing
Part # Aliases OMRG3VM21GR1
Supplier Package SOP
Standard Package Name SOIC
EU RoHS Compliant
I/O Isolation Voltage 1500(RMS)
Maximum Input Current 50
Maximum Output Current 0.3
Maximum Output Voltage 20
Maximum Operating Temperature 85
Minimum Operating Temperature -20
Maximum Input Voltage 1.3
Pin Count 4
Lead Shape Gull-wing
Relay Type Relay
Mounting Type Surface Mount
Load Current 300mA
Voltage - Load 0 ~ 20 V
Supplier Device Package 4-SOP
Packaging Tube
On-State Resistance 1.5 Ohm
Circuit SPST-NO (1 Form A)
Voltage - Input 1.15VDC
Package/Case 4-SOP (0.173", 4.40mm)
rohs Lead free / RoHS Compliant
CAD Drawing 3D CAD Model
Depth 4.4mm
Height 1.9mm
Length 3.9mm
Maximum Control Voltage 1.3 V
Maximum Load Current 0.3 A
Maximum Load Voltage 20 V
Minimum Load Current 300 mA
Input Current 50 mA
Load Voltage Max :20VAC
On State Resistance Max :1.5ohm
Contact Configuration :SPST-NO
Isolation Voltage :1.5kV
Forward Current If :30mA
Relay Terminals :SMD
SVHC :No SVHC (20-Jun-2013)
Control Voltage DC Max :1.3V
Control Voltage DC Min :1V
Dielectric Strength Voltage Vrms :1500V
Turn Off Time :0.2ns
Turn On Time :0.09μs
Weight (kg) 0.0001
Tariff No. 85364900
Capacitance 2.5pF
ContactForm SPST-NO
Current,Leakage 1nA
Current,Rating 160mA
Function General-Purpose
MountingType SMD
NumberofPins 4
RelayType MOSFET
Standards UL,RoHS
Termination SurfaceMount
Voltage,Rating 20V
Case SOP4
Relay type solid state
Operating current max 300mA
Multiplicity 1
Contacts configuration SPST-NO
Release time 0.5ms
Control current 30mA
Gross weight 0.3 g
Operating temperature -20...85°C
Operate time 0.5ms
Relay variant 1-phase, MOSFET
Relay series G3VM
Switched voltage max 20V DC, max 20V AC
